Festo
MSB6-1/2:C3:J1:F1-WP
MFR #MSB6-1/2:C3:J1:F1-WP
SKU #YLSKCUYLRAVFQW
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

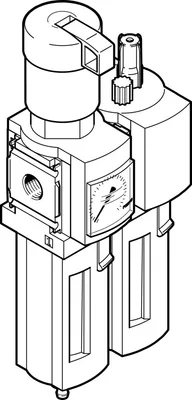

Festo MSB6-1/2-FRC13:J120M1
Şartlandırıcı kombinasyonu. Filtre, regülatör ve yağlayıcı işlevleri tek ünitede. Yüksek debi ve kirleticileri gidermede yüksek verimlilik. Minimum basınç histerezisi ile iyi kontrol özellikleri. 62 mm ızgara ölçüsünde standart nominal debi <=4.800 l/min
Boyut6
SeriMS
Montaj konumuDikey +/-5°
Filtrasyon derecesi40
Kondens tahliyesiManuel, döner
TasarımOransal standart sisleme yağlayıcı
Ürün Hakkında
Şartlandırıcı kombinasyonu. Filtre, regülatör ve yağlayıcı işlevleri tek ünitede. Yüksek debi ve kirleticileri gidermede yüksek verimlilik. Minimum basınç histerezisi ile iyi kontrol özellikleri. 62 mm ızgara ölçüsünde standart nominal debi <=4.800 l/min
Festo MSB6-1/2-FRC13:J120M1
- Orijinal ve sertifikalı Festo ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Boyut6
SeriMS
Aktüatör kilidiKilitlemeli döner düğme, aksesuarlarla kapatılabilir
Montaj konumuDikey +/-5°
Filtrasyon derecesi40
Kondens tahliyesiManuel, döner
TasarımOransal standart sisleme yağlayıcı
Kontrolör fonksiyonuSabit çıkış basıncı, Primer basınç dengelemeli, Sekonder tahliyeli, Geri akış fonksiyonlu
Hazne koruyucuPlastik hazne koruması
Sembol00991761
Manometre (ANALOG) veya basınç göstergesi (DIGITAL)Manometreli
Çalışma basıncı0.8, 18
Basınç ayar aralığı0.5, 7
Standart nominal debi (DIN 1343'e göre standartlaştırılmış)4800
Çalışma ortamıAsal gaz
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Korozyon direnci sınıfı CRC2 - Orta korozyon yükü
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Depolama sıcaklığı-10, 60
Gıda ile kullanıma uygunEk doküman bilgilerine bakınız
Çıkışta hava saflık sınıfıISO 8573-1:2010 [7:4:-] uyarınca basınçlı hava
Ortam sıcaklığı (akışkan)-10, 60
Ortam sıcaklığı-10, 60
Ürün ağırlığı1495
Montaj tipiAksesuarlı
Pnömatik bağlantı, port 1G1/2
Pnömatik bağlantı, port 2G1/2
Malzemelere ilişkin notRoHS uyumlu
Gövde malzemesiBasınçlı döküm alüminyum
Hazne malzemesiMakrolon®
Aksesuarlar 151
Festo MSB6-1/2-FRC13:J120M1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| U-1/2 | Silencer · Silencer | |
| PUN-H-12X2-SW | Plastic tubing · Tubes | |
| MS6-WP | Mounting bracket · Mounting accessories | |
| AMTE-M-LH-G12 | Silencer · Silencer | |
| PUN-H-12X2-TBL-200 | Plastic tubing · Tubes | |
| LRVS-D | Padlock · General accessories | |
| PUN-H-12X2-NT | Plastic tubing · Tubes | |
| MS6-WB | Mounting bracket · Mounting accessories | |
| PUN-H-12X2-BL | Plastic tubing · Tubes | |
| MS6-LFP-E | Filter cartridge · General accessories | |
| QS-G1/2-12-I | Push-in fitting · Fittings | |
| QSL-G1/2-12 | Push-in L-fitting · Fittings | |
| QS-G1/2-12 | Push-in fitting · Fittings | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T quick connector · Quick connectors | |
| U-1/2-B | Silencer · Silencer | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| CQ-1/2-12 | Push-in fitting · Connection accessories | |
| CQ-1/2-15 | Push-in fitting · Connection accessories | |
| CQ-1/2-18 | Push-in fitting · Connection accessories | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/2-16 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| MS6-WPM-D | Mounting bracket · Mounting accessories | |
| MS6-WPB | Mounting bracket · Mounting accessories | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-WPM-2D | Mounting bracket · Mounting accessories | |
| MS6-MVM | Module connector · Mounting accessories | |
| U-1/2-20 | Silencer · Silencer | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| MS6-END | Cover cap · Mounting accessories | |
| MS6-WP-EX | Mounting bracket · Mounting accessories | |
| MS6-RMV | Module connector · Mounting accessories | |
| MS6-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS6-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS6-A-IPM-80 | Branching module · Mounting accessories | |
| MS6-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| MS6-9-ARMV | Module connector · Mounting accessories | |
| MS6-RMV-EX | Module connector · Mounting accessories | |
| AMTE-M-H-G12 | Silencer · Silencer | |
| MS6-9-ARMV-EX | Module connector · Mounting accessories | |
| MS6-9-AMV | Module connector · Mounting accessories | |
| MS6-9-AMV-EX | Module connector · Mounting accessories | |
| NPFC-L-2G12-F | Elbow fitting · Push-in fittings | |
| NPFC-Y-3G12-F | Y-fitting · Push-in fittings | |
| NPFC-T-3G12-F | T-fitting · Push-in fittings | |
| NPFC-T-2G12-R12-FMF | T-fitting · Push-in fittings | |
| NPFC-T-G12-2R12-FMM | T-fitting · Push-in fittings | |
| NPFC-X-4G12-F | X-fitting · Push-in fittings | |
| NPFC-D-2G12-M | Double nipple · Push-in fittings | |
| NPFC-S-2G12-F | Sleeve · Push-in fittings | |
| NPFC-E1-2G12-FM | Extension · Push-in fittings | |
| NPFC-R-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-FM | Reducing nipple · Push-in fittings | |
| NPFC-D-2G12-M-P50 | Double nipple · Push-in fittings | |
| NPFC-D-G12-G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G12-G18-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G38-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-H-G12-F | Bulkhead fitting · Push-in fittings | |
| MS6-WPG | Wall mounting-SET · Mounting accessories | |
| MS6-MV1 | Module connector · Mounting accessories | |
| NPFC-DS-G14-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G38-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G12-G12-M | Double nipple · Push-in fittings | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Push-in fittings | |
| MS6-WP-F1A | Mounting bracket · Mounting accessories |
İlgili Ürünler
Detayları Gör
Festo
MS6-LFR-AGE-D7-C-R-V
MFR #MS6-LFR-AGE-D7-C-R-V
SKU #YLS0UMEDKC40YT6
Detayları Gör
Festo
MSB6-1/2:J1:F3-WP
MFR #MSB6-1/2:J1:F3-WP
SKU #YLSMR04WUAHUEVA
Detayları Gör
Festo
MS6-LFR-AGE-D6-E-R-M-AS
MFR #MS6-LFR-AGE-D6-E-R-M-AS
SKU #YLSZSFTUHD7A3I7
Detayları Gör
Festo
MSB6-1/2:J120:M1-WP
MFR #MSB6-1/2:J120:M1-WP
SKU #YLSA2SKELKFQP6
Detayları Gör
Festo
MS6-LFR-AGE-D7-E-R-M
MFR #MS6-LFR-AGE-D7-E-R-M
SKU #YLSNZFB1UVAECIL
Detayları Gör
Festo
MSB6-1/2:J121:M1-WP
MFR #MSB6-1/2:J121:M1-WP
SKU #YLSODTQSWMDH2O
Detayları Gör
Festo
MS6-LFR-AGE-D7-E-R-M-MPA-AS
MFR #MS6-LFR-AGE-D7-E-R-M-MPA-AS
SKU #YLSFIPASJZRVXL
Detayları Gör
Festo
MSB6-1/2:J1:M1-WP
MFR #MSB6-1/2:J1:M1-WP
SKU #YLSBUDQ2YSLP8X
Detayları Gör
Festo
MS6-LFR-AGE-D7-E-R-V
MFR #MS6-LFR-AGE-D7-E-R-V
SKU #YLSI7IVJYMMB5W
Öne Çıkan Ürünler
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
İlgili Aramalar
Festo MSB6-1/2-FRC13:J120M1 fiyatFesto MSB6-1/2-FRC13:J120M1 teklif alFesto MSB6-1/2-FRC13:J120M1 satın alMSB6-1/2-FRC13:J120M1 fiyatMSB6-1/2-FRC13:J120M1 stok durumuFesto yedek parçaFesto MSB6-1/2-FRC13:J120M1 muadilFesto MSB6-1/2-FRC13:J120M1 teknik özellikler
