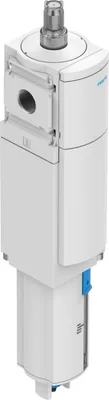

FESTO MS6-LFM-1/2-AUV-HF-DA
Mikro filtre. Izgara ölçüsü 62 mm. Son derece temiz basınçlı hava için yüksek verimli filtre. Basınçlı havadan yağ aerosollerinin giderilmesi. Kirlenme göstergesi için isteğe bağlı fark basınç göstergesi. Elektronik filtre kirlilik göstergesiyle temin edilebilir
SeriMS
Boyut6
TasarımElyaf filtre
Filtrasyon derecesi0.01
Kondens tahliyesiManuel, kilitlemesiz
Sembol00991544
Ürün Hakkında
Mikro filtre. Izgara ölçüsü 62 mm. Son derece temiz basınçlı hava için yüksek verimli filtre. Basınçlı havadan yağ aerosollerinin giderilmesi. Kirlenme göstergesi için isteğe bağlı fark basınç göstergesi. Elektronik filtre kirlilik göstergesiyle temin edilebilir
FESTO MS6-LFM-1/2-AUV-HF-DA
- Orijinal ve sertifikalı FESTO ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
SeriMS
Boyut6
TasarımElyaf filtre
Filtrasyon derecesi0.01
Kondens tahliyesiManuel, kilitlemesiz
Sembol00991544
Çalışma basıncı0.2, 1.2
Çalışma basıncı2, 12
Çalışma ortamıISO 8573-1:2010 [6:-:4]'e göre basınçlı hava, İnert gaz
Çıkışta hava saflık sınıfıISO 8573-1:2010 [3:-:2] uyarınca basınçlı hava
Temiz hava sınıfı için maks. standart debi2500
Temiz hava sınıfı için min. standart debi150
Filtre verimi99.99
Maks. kondensat hacmi38
Hazne koruyucuMetal hazne olarak entegre
Korozyon direnci sınıfı CRC2 - Orta korozyon yükü
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Gıda ile kullanıma uygunEk doküman bilgilerine bakınız
Ortam sıcaklığı (akışkan)-10, 60
Ortam sıcaklığı-10, 60
Depolama sıcaklığı-10, 60
Filtre verimi, ince partiküller99.995
MPPS0.05
Filtre verimliliği MPPS99.95
Artık yağ içeriği0.5
Filtre verimi, yağ aerosolü99
Fark basıncı göstergesiGörsel gösterge
Montaj tipiAksesuarlı
Montaj konumuDikey +/-5°
Pnömatik bağlantı, port 1G1/2
Pnömatik bağlantı, port 2G1/2
Gövde malzemesiBasınçlı döküm alüminyum
Filtre malzemesiBorosilikat elyaf
Hazne malzemesiDövme alüminyum alaşımı
Sızdırmazlık malzemesiNBR
Malzemelere ilişkin notRoHS uyumlu
Ürün ağırlığı1500
Aksesuarlar 151
FESTO MS6-LFM-1/2-AUV-HF-DA motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| MS6-WP | Mounting bracket · Mounting accessories | |
| MS6-WB | Mounting bracket · Mounting accessories | |
| PWEA-AC-3D | Condensate drain · General accessories | |
| PUN-H-12X2-TBL | Plastic tubing · Tubes | |
| PUN-H-12X2-NT | Plastic tubing · Tubes | |
| QSL-G1/2-12 | Push-in L-fitting · Fittings | |
| PUN-H-12X2-BL | Plastic tubing · Tubes | |
| QS-G1/2-12 | Push-in fitting · Fittings | |
| PUN-H-12X2-SW | Plastic tubing · Tubes | |
| QS-G1/2-12-I | Push-in fitting · Fittings | |
| MS6-MV1 | Module connector · Mounting accessories | |
| MS6-LFM-A-HF | Micro-filter cartridge · General accessories | |
| PUN-H-16X2,5-NT | Plastic tubing · Tubes | |
| PUN-H-16X2,5-BL | Plastic tubing · Tubes | |
| PUN-H-16X2,5-SW | Plastic tubing · Tubes | |
| QSL-G1/2-16 | Push-in L-fitting · Fittings | |
| QS-G1/2-16 | Push-in fitting · Fittings | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T quick connector · Quick connectors | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| CQ-1/2-12 | Push-in fitting · Connection accessories | |
| CQ-1/2-15 | Push-in fitting · Connection accessories | |
| CQ-1/2-18 | Push-in fitting · Connection accessories | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| MS6-WPM-D | Mounting bracket · Mounting accessories | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-WPM-2D | Mounting bracket · Mounting accessories | |
| MS6-MVM | Module connector · Mounting accessories | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| PWEA-AC-6A | Condensate drain · General accessories | |
| PWEA-AC-7A | Condensate drain · General accessories | |
| MS6-END | Cover cap · Mounting accessories | |
| MS6-WP-EX | Mounting bracket · Mounting accessories | |
| MS6-RMV | Module connector · Mounting accessories | |
| MS6-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS6-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS6-A-IPM-80 | Branching module · Mounting accessories | |
| MS6-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| MS6-9-ARMV | Module connector · Mounting accessories | |
| MS6-RMV-EX | Module connector · Mounting accessories | |
| MS6-9-ARMV-EX | Module connector · Mounting accessories | |
| MS6-9-AMV | Module connector · Mounting accessories | |
| MS6-9-AMV-EX | Module connector · Mounting accessories | |
| NPFC-L-2G12-F | Elbow fitting · Push-in fittings | |
| NPFC-Y-3G12-F | Y-fitting · Push-in fittings | |
| NPFC-T-3G12-F | T-fitting · Push-in fittings | |
| NPFC-T-2G12-R12-FMF | T-fitting · Push-in fittings | |
| NPFC-T-G12-2R12-FMM | T-fitting · Push-in fittings | |
| NPFC-X-4G12-F | X-fitting · Push-in fittings | |
| NPFC-D-2G12-M | Double nipple · Push-in fittings | |
| NPFC-S-2G12-F | Sleeve · Push-in fittings | |
| NPFC-E1-2G12-FM | Extension · Push-in fittings | |
| NPFC-R-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-FM | Reducing nipple · Push-in fittings | |
| NPFC-D-2G12-M-P50 | Double nipple · Push-in fittings | |
| NPFC-D-G12-G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G12-G18-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G38-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-H-G12-F | Bulkhead fitting · Push-in fittings | |
| MS6-WPG | Wall mounting-SET · Mounting accessories | |
| NPFC-DS-G14-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G38-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G12-G12-M | Double nipple · Push-in fittings | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Push-in fittings | |
| MS6-RB-10 | Covering kit · Mounting accessories | |
| MS6-WP-F1A | Mounting bracket · Mounting accessories |
İlgili Ürünler
Detayları Gör
Festo
MS12-LFM
MFR #MS12-LFM
SKU #YLSWA4F9JKCJ5U
Detayları Gör
Festo
MS9-LF
MFR #MS9-LF
SKU #YLSB0LR3OSBHI7D
Detayları Gör
Festo
MS9-LFM
MFR #MS9-LFM
SKU #YLSKPKIAC3YHCDB
Detayları Gör
Festo
MS4-LFM
MFR #MS4-LFM
SKU #YLSWJVTIPCZZGXH
Detayları Gör
Festo
MS6-LFM
MFR #MS6-LFM
SKU #YLSZQS7RFD345AN
Detayları Gör
Festo
MS4-LFX
MFR #MS4-LFX
SKU #YLS59AX49NAVSN
Detayları Gör
Festo
MS4-LFP1-C
MFR #MS4-LFP1-C
SKU #YLSYFIPMFGJJ9W
Detayları Gör
Festo
MS4-LFP1-E
MFR #MS4-LFP1-E
SKU #YLSDF1MVMUZJX5W
Detayları Gör
Festo
MS6-LFP1-C
MFR #MS6-LFP1-C
SKU #YLS6XQ8BUUO52AD
Öne Çıkan Ürünler
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
İlgili Aramalar
FESTO MS6-LFM-1/2-AUV-HF-DA fiyatFESTO MS6-LFM-1/2-AUV-HF-DA teklif alFESTO MS6-LFM-1/2-AUV-HF-DA satın alMS6-LFM-1/2-AUV-HF-DA fiyatMS6-LFM-1/2-AUV-HF-DA stok durumuFESTO yedek parçaFESTO MS6-LFM-1/2-AUV-HF-DA muadilFESTO MS6-LFM-1/2-AUV-HF-DA teknik özellikler
