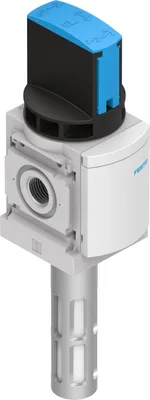

FESTO MS6-EM1-1/2-S
Açma/kapama valfi. Pnömatik sistemlerin basınçlandırılması ve tahliyesi için manuel 3/2 yollu valf. 3 numaralı porta susturucu takılabilir veya egzoz havası yönlendirilebilir. Anahtarlama konumu anında fark edilir. İsteğe bağlı manometre ve basınç sensörü ile. Lityum iyon batarya üretim sistemleri için önerilen varyantlar. 62 mm ızgara ölçüsüyle standart nominal debi <=6.500 l/min
TasarımDöner anahtarlama valfi
Kumanda tipiManuel
Egzoz havası fonksiyonuKısılamaz
Pilotlama tipiDoğrudan
Sembol00991670
Valf fonksiyonu3/2 yollu, çift bobinli
Ürün Hakkında
Açma/kapama valfi. Pnömatik sistemlerin basınçlandırılması ve tahliyesi için manuel 3/2 yollu valf. 3 numaralı porta susturucu takılabilir veya egzoz havası yönlendirilebilir. Anahtarlama konumu anında fark edilir. İsteğe bağlı manometre ve basınç sensörü ile. Lityum iyon batarya üretim sistemleri için önerilen varyantlar. 62 mm ızgara ölçüsüyle standart nominal debi <=6.500 l/min
FESTO MS6-EM1-1/2-S
- Orijinal ve sertifikalı FESTO ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
TasarımDöner anahtarlama valfi
Kumanda tipiManuel
Egzoz havası fonksiyonuKısılamaz
Pilotlama tipiDoğrudan
Sembol00991670
Valf fonksiyonu3/2 yollu, çift bobinli
Çalışma basıncı0, 18
C değeri30.8
b değeri0.57
Standart nominal debi (DIN 1343'e göre standartlaştırılmış)8700
Çalışma ortamıISO 8573-1:2010 [7:4:4] uyarınca basınçlı hava, İnert gaz
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Korozyon direnci sınıfı CRC2 - Orta korozyon yükü
Malzemelere ilişkin notRoHS uyumlu
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Ortam sıcaklığı (akışkan)-10, 60
Ortam sıcaklığı-10, 60
Gıda ile kullanıma uygunEk doküman bilgilerine bakınız
Montaj tipiSeçenekler:, Hat içi montaj, Aksesuarlarla
Montaj konumuHerhangi
Akış yönüGeri döndürülemez
Ürün ağırlığı655
Pnömatik bağlantı, port 1G1/2
Pnömatik bağlantı, port 2G1/2
Pnömatik bağlantı, port 3Entegre susturucu, Kanalsız
Sızdırmazlık malzemesiTPE-U(PU)
Gövde malzemesiBasınçlı döküm alüminyum
Aksesuarlar 147
FESTO MS6-EM1-1/2-S motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| PUN-H-12X2-TBL-200 | Plastic tubing · Tubes | |
| MS6-WB | Mounting bracket · Mounting accessories | |
| PUN-H-12X2-BL | Plastic tubing · Tubes | |
| QSL-G1/2-12 | Push-in L-fitting · Fittings | |
| QS-G1/2-12 | Push-in fitting · Fittings | |
| PUN-H-12X2-SW | Plastic tubing · Tubes | |
| QS-G1/2-12-I | Push-in fitting · Fittings | |
| PUN-H-12X2-NT | Plastic tubing · Tubes | |
| MS6-WP | Mounting bracket · Mounting accessories | |
| QS-G1/2-16 | Push-in fitting · Fittings | |
| QSL-G1/2-16 | Push-in L-fitting · Fittings | |
| PUN-H-16X2,5-NT | Plastic tubing · Tubes | |
| PUN-H-16X2,5-BL | Plastic tubing · Tubes | |
| PUN-H-16X2,5-SW | Plastic tubing · Tubes | |
| MS6-MV1 | Module connector · Mounting accessories | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T-quick connector · Quick connectors | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| CQ-1/2-12 | Push-in fitting · Connection accessories | |
| CQ-1/2-15 | Push-in fitting · Connection accessories | |
| CQ-1/2-18 | Push-in fitting · Connection accessories | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| MS6-WPM-D | Mounting bracket · Mounting accessories | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-WPM-2D | Mounting bracket · Mounting accessories | |
| MS6-MVM | Module connector · Mounting accessories | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| MS6-END | Cover cap · Mounting accessories | |
| MS6-WP-EX | Mounting bracket · Mounting accessories | |
| MS6-RMV | Module connector · Mounting accessories | |
| MS6-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS6-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS6-A-IPM-80 | Branching module · Mounting accessories | |
| MS6-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| MS6-9-ARMV | Module connector · Mounting accessories | |
| MS6-RMV-EX | Module connector · Mounting accessories | |
| MS6-9-ARMV-EX | Module connector · Mounting accessories | |
| MS6-9-AMV | Module connector · Mounting accessories | |
| MS6-9-AMV-EX | Module connector · Mounting accessories | |
| NPFC-L-2G12-F | Elbow fitting · Push-in fittings | |
| NPFC-Y-3G12-F | Y-fitting · Push-in fittings | |
| NPFC-T-3G12-F | T-fitting · Push-in fittings | |
| NPFC-T-2G12-R12-FMF | T-fitting · Push-in fittings | |
| NPFC-T-G12-2R12-FMM | T-fitting · Push-in fittings | |
| NPFC-X-4G12-F | X-fitting · Push-in fittings | |
| NPFC-D-2G12-M | Double nipple · Push-in fittings | |
| NPFC-S-2G12-F | Coupling sleeve · Push-in fittings | |
| NPFC-E1-2G12-FM | Extension · Push-in fittings | |
| NPFC-R-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-FM | Reducing nipple · Push-in fittings | |
| NPFC-D-2G12-M-P50 | Double nipple · Push-in fittings | |
| NPFC-D-G12-G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G12-G18-F | Reducing coupling · Push-in fittings | |
| NPFC-R-G12-G14-F | Reducing coupling · Push-in fittings | |
| NPFC-R-G12-G38-F | Reducing coupling · Push-in fittings | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-H-G12-F | Bulkhead fitting · Push-in fittings | |
| MS6-WPG | Wall mounting-SET · Mounting accessories | |
| NPFC-DS-G14-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G38-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G12-G12-M | Double nipple · Push-in fittings | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Push-in fittings | |
| MS6-RB-10 | Covering kit · Mounting accessories | |
| MS6-WP-F1A | Mounting bracket · Mounting accessories |
İlgili Ürünler
Detayları Gör
Festo
MS4(N)-DE
MFR #MS4(N)-DE
SKU #YLSYPMUJ5U9EQIH
Detayları Gör
Festo
VPPE-3-1-1/4-6-420-E1-F1A
MFR #VPPE-3-1-1/4-6-420-E1-F1A
SKU #YLSWDBTTICLA2KL
Detayları Gör
Festo
VPPE-3-1-1/4-6-420-E1T-F1A
MFR #VPPE-3-1-1/4-6-420-E1T-F1A
SKU #YLSBPNHJ3RMXXMI
Detayları Gör
Festo
VPPE-3-1-1/4-10-420-E1T-F1A
MFR #VPPE-3-1-1/4-10-420-E1T-F1A
SKU #YLSM2OFNCBYIG
Detayları Gör
Festo
VPPE-3-1-1/4-10-420-E1-F1A
MFR #VPPE-3-1-1/4-10-420-E1-F1A
SKU #YLSL17ZHMCVKDM
Detayları Gör
Festo
VPPE-3-1-1/4-2-420-E1T-F1A
MFR #VPPE-3-1-1/4-2-420-E1T-F1A
SKU #YLSKQHX9SCY1E2T
Detayları Gör
Festo
VPPE-3-1-1/4-2-420-E1-F1A
MFR #VPPE-3-1-1/4-2-420-E1-F1A
SKU #YLSPMEV3O6KTPGV
Detayları Gör
Festo
VPPE-3-1-1/4-6-MR-E1-F1A
MFR #VPPE-3-1-1/4-6-MR-E1-F1A
SKU #YLS8ARO0HDHAUUI
Detayları Gör
Festo
VPPE-3-1-1/4-10-MR-E1-F1A
MFR #VPPE-3-1-1/4-10-MR-E1-F1A
SKU #YLS8I7GHDJKSH4F
Öne Çıkan Ürünler
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
İlgili Aramalar
FESTO MS6-EM1-1/2-S fiyatFESTO MS6-EM1-1/2-S teklif alFESTO MS6-EM1-1/2-S satın alMS6-EM1-1/2-S fiyatMS6-EM1-1/2-S stok durumuFESTO yedek parçaFESTO MS6-EM1-1/2-S muadilFESTO MS6-EM1-1/2-S teknik özellikler
