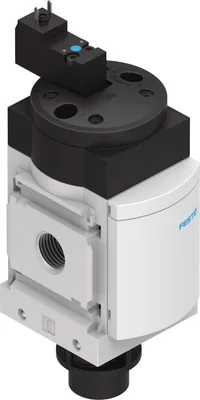

FESTO MS6-EE-1/2-10V24-Z
Açma/kapama valfi. Pnömatik tesisatların basınçlandırılması ve tahliyesi için elektrikli 3/2 yollu valf. 3 numaralı porta susturucu takılabilir veya egzoz havası yönlendirilebilir. Besleme gerilimi 24 V DC, 110, 230 V AC. İsteğe bağlı manometre ve basınç sensörü ile. Solenoid bobinli, soketsiz. 62 mm ızgara ölçüsüyle standart nominal debi <=6.500 l/min
TasarımPistonlu sürgülü valf
Kumanda tipiElektrikli
Egzoz havası fonksiyonuKısılamaz
Manuel kumandaKilitlemesiz
Sıfırlama tipiMekanik yay
Pilotlama tipiPilot kumandalı
Ürün Hakkında
Açma/kapama valfi. Pnömatik tesisatların basınçlandırılması ve tahliyesi için elektrikli 3/2 yollu valf. 3 numaralı porta susturucu takılabilir veya egzoz havası yönlendirilebilir. Besleme gerilimi 24 V DC, 110, 230 V AC. İsteğe bağlı manometre ve basınç sensörü ile. Solenoid bobinli, soketsiz. 62 mm ızgara ölçüsüyle standart nominal debi <=6.500 l/min
FESTO MS6-EE-1/2-10V24-Z
- Orijinal ve sertifikalı FESTO ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
TasarımPistonlu sürgülü valf
Kumanda tipiElektrikli
Egzoz havası fonksiyonuKısılamaz
Manuel kumandaKilitlemesiz
Sıfırlama tipiMekanik yay
Pilotlama tipiPilot kumandalı
Sembol00991008
Valf fonksiyonu3/2 yollu, tek bobinli, normalde kapalı
Çalışma basıncı4, 10
C değeri29
b değeri0.4
Standart nominal debi (DIN 1343'e göre standartlaştırılmış)7000
Çalışma oranı100%
Karakteristik bobin verileri24 V DC: 2.5 W
İzin verilen gerilim dalgalanmaları+/-10%
Çalışma ortamıISO 8573-1:2010 [7:4:4] uyarınca basınçlı hava, İnert gaz
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Korozyon direnci sınıfı CRC2 - Orta korozyon yükü
Malzemelere ilişkin notRoHS uyumlu
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Ortam sıcaklığı (akışkan)-10, 60
Koruma sınıfıIP65
Ortam sıcaklığı-10, 50
Gıda ile kullanıma uygunEk doküman bilgilerine bakınız
Montaj tipiSeçenekler:, Hat içi montaj, Aksesuarlarla
Montaj konumuHerhangi
Akış yönüGeri döndürülemez
Ürün ağırlığı740
Pnömatik bağlantı, port 1G1/2
Pnömatik bağlantı, port 2G1/2
Pnömatik bağlantı, port 3G1/2
Pilot hava beslemesiDahili
Elektrik bağlantısıTip C, Fiş, DIN EN 175301-803'e göre, Kare tasarım
Sızdırmazlık malzemesiNBR
Gövde malzemesiBasınçlı döküm alüminyum
Aksesuarlar 166
FESTO MS6-EE-1/2-10V24-Z motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| PUN-H-12X2-BL | Plastic tubing · Tubes | |
| PUN-H-12X2-SW | Plastic tubing · Tubes | |
| MS6-WP | Mounting bracket · Mounting accessories | |
| MSSD-EB | Plug socket · Electrical accessories | |
| U-1/2 | Silencer · Silencer | |
| PUN-H-12X2-TBL-200 | Plastic tubing · Tubes | |
| PUN-H-12X2-NT | Plastic tubing · Tubes | |
| KMEB-1-24-2.5-LED | Plug socket with cable · Electrical accessories | |
| MS6-WB | Mounting bracket · Mounting accessories | |
| AMTE-M-LH-G12 | Silencer · Silencer | |
| QS-G1/2-12 | Push-in fitting · Fittings | |
| QS-G1/2-12-I | Push-in fitting · Fittings | |
| QSL-G1/2-12 | Push-in L-fitting · Fittings | |
| MS6-MV1 | Module connector · Mounting accessories | |
| PUN-H-16X2,5-NT | Plastic tubing · Tubes | |
| QS-G1/2-16 | Push-in fitting · Fittings | |
| PUN-H-16X2,5-BL | Plastic tubing · Tubes | |
| QSL-G1/2-16 | Push-in L-fitting · Fittings | |
| PUN-H-16X2,5-SW | Plastic tubing · Tubes | |
| U-1/2-B | Silencer · Silencer | |
| MEB-LD-12-24DC | Illuminating seal · Electrical accessories | |
| MS6-AGF | Connecting plate SET · Mounting accessories | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T-quick connector · Quick connectors | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| KMEB-1-24-5-LED | Plug socket with cable · Electrical accessories | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| KMEB-2-24-2,5-LED | Plug socket with cable · Electrical accessories | |
| KMEB-2-24-5-LED | Plug socket with cable · Electrical accessories | |
| KMEB-2-24-M12-0,5-LED | Plug socket with cable · Electrical accessories | |
| CQ-1/2-12 | Push-in fitting · Connection accessories | |
| CQ-1/2-15 | Push-in fitting · Connection accessories | |
| CQ-1/2-18 | Push-in fitting · Connection accessories | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| MSSD-EB-M12-MONO | Plug socket · Electrical accessories | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| KMEB-1-24-10-LED | Plug socket with cable · Electrical accessories | |
| MS6-WPM-D | Mounting bracket · Mounting accessories | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-WPM-2D | Mounting bracket · Mounting accessories | |
| MS6-MVM | Module connector · Mounting accessories | |
| U-1/2-20 | Silencer · Silencer | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| MS6-END | Cover cap · Mounting accessories | |
| MSSD-EB-M12 | Socket · Electrical accessories | |
| MS6-WP-EX | Mounting bracket · Mounting accessories | |
| MS6-RMV | Module connector · Mounting accessories | |
| MS6-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS6-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS6-A-IPM-80 | Branching module · Mounting accessories | |
| MS6-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| KMEB-3-24-2.5-LED | Plug socket with cable · Electrical accessories | |
| KMEB-3-24-5-LED | Plug socket with cable · Electrical accessories | |
| KMEB-3-24-2.5 | Plug socket with cable · Electrical accessories | |
| KMEB-3-24-5 | Plug socket with cable · Electrical accessories | |
| MS6-9-ARMV | Module connector · Mounting accessories | |
| MS6-RMV-EX | Module connector · Mounting accessories | |
| AMTE-M-H-G12 | Silencer · Silencer | |
| MS6-9-ARMV-EX | Module connector · Mounting accessories | |
| MS6-9-AMV | Module connector · Mounting accessories | |
| MS6-9-AMV-EX | Module connector · Mounting accessories | |
| NPFC-L-2G12-F | Elbow fitting · Push-in fittings | |
| NPFC-Y-3G12-F | Y-fitting · Push-in fittings | |
| NPFC-T-3G12-F | T-fitting · Push-in fittings | |
| NPFC-T-2G12-R12-FMF | T-fitting · Push-in fittings | |
| NPFC-T-G12-2R12-FMM | T-fitting · Push-in fittings | |
| NPFC-X-4G12-F | X-fitting · Push-in fittings | |
| NPFC-D-2G12-M | Double nipple · Push-in fittings | |
| NPFC-S-2G12-F | Coupling sleeve · Push-in fittings | |
| NPFC-E1-2G12-FM | Extension · Push-in fittings | |
| NPFC-R-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-FM | Reducing nipple · Push-in fittings | |
| NPFC-D-2G12-M-P50 | Double nipple · Push-in fittings | |
| NPFC-D-G12-G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G12-G18-F | Reducing coupling · Push-in fittings | |
| NPFC-R-G12-G14-F | Reducing coupling · Push-in fittings | |
| NPFC-R-G12-G38-F | Reducing coupling · Push-in fittings | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-H-G12-F | Bulkhead fitting · Push-in fittings | |
| MS6-WPG | Wall mounting-SET · Mounting accessories | |
| NPFC-DS-G14-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G38-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G12-G12-M | Double nipple · Push-in fittings | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Push-in fittings | |
| MS6-RB-10 | Covering kit · Mounting accessories | |
| MS6-WP-F1A | Mounting bracket · Mounting accessories |
İlgili Ürünler
Detayları Gör
Festo
MS4(N)-DE
MFR #MS4(N)-DE
SKU #YLSYPMUJ5U9EQIH
Detayları Gör
Festo
VPPE-3-1-1/4-6-420-E1-F1A
MFR #VPPE-3-1-1/4-6-420-E1-F1A
SKU #YLSWDBTTICLA2KL
Detayları Gör
Festo
VPPE-3-1-1/4-6-420-E1T-F1A
MFR #VPPE-3-1-1/4-6-420-E1T-F1A
SKU #YLSBPNHJ3RMXXMI
Detayları Gör
Festo
VPPE-3-1-1/4-10-420-E1T-F1A
MFR #VPPE-3-1-1/4-10-420-E1T-F1A
SKU #YLSM2OFNCBYIG
Detayları Gör
Festo
VPPE-3-1-1/4-10-420-E1-F1A
MFR #VPPE-3-1-1/4-10-420-E1-F1A
SKU #YLSL17ZHMCVKDM
Detayları Gör
Festo
VPPE-3-1-1/4-2-420-E1T-F1A
MFR #VPPE-3-1-1/4-2-420-E1T-F1A
SKU #YLSKQHX9SCY1E2T
Detayları Gör
Festo
VPPE-3-1-1/4-2-420-E1-F1A
MFR #VPPE-3-1-1/4-2-420-E1-F1A
SKU #YLSPMEV3O6KTPGV
Detayları Gör
Festo
VPPE-3-1-1/4-6-MR-E1-F1A
MFR #VPPE-3-1-1/4-6-MR-E1-F1A
SKU #YLS8ARO0HDHAUUI
Detayları Gör
Festo
VPPE-3-1-1/4-10-MR-E1-F1A
MFR #VPPE-3-1-1/4-10-MR-E1-F1A
SKU #YLS8I7GHDJKSH4F
Öne Çıkan Ürünler
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
İlgili Aramalar
FESTO MS6-EE-1/2-10V24-Z fiyatFESTO MS6-EE-1/2-10V24-Z teklif alFESTO MS6-EE-1/2-10V24-Z satın alMS6-EE-1/2-10V24-Z fiyatMS6-EE-1/2-10V24-Z stok durumuFESTO yedek parçaFESTO MS6-EE-1/2-10V24-Z muadilFESTO MS6-EE-1/2-10V24-Z teknik özellikler
