Detayları Gör
Festo
YXCF-1
MFR #YXCF-1
SKU #YLSBOLBVXXHTEQR
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

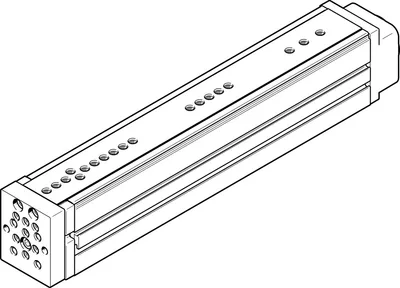

FESTO EGSL-BS-55-200-12.7P
Mini kızak. Çok yüksek nominal kızak yükü, presle geçirme veya birleştirme gibi dikey uygulamalar için ideal. Güvenilir: tamamen kapalı mil, kir veya küçük parçaların kılavuz alanına girmesini önler. Eksenel veya paralel motor montajı. Elektromekanik aktüatörler, motorlar, servo sürücüler ve kontrol sistemlerinden oluşan kapsamlı ürün portföyümüze mükemmel uyum sağlar
Çalışma stroku200
Boyut55
Z ekseni boyunca hareket paralelliği0.08
Paralellik0.1
Teorik yön değiştirme boşluğu50
Mil çapı12.7
Ürün Hakkında
Mini kızak. Çok yüksek nominal kızak yükü, presle geçirme veya birleştirme gibi dikey uygulamalar için ideal. Güvenilir: tamamen kapalı mil, kir veya küçük parçaların kılavuz alanına girmesini önler. Eksenel veya paralel motor montajı. Elektromekanik aktüatörler, motorlar, servo sürücüler ve kontrol sistemlerinden oluşan kapsamlı ürün portföyümüze mükemmel uyum sağlar
FESTO EGSL-BS-55-200-12.7P
- Orijinal ve sertifikalı FESTO ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Çalışma stroku200
Boyut55
Z ekseni boyunca hareket paralelliği0.08
Paralellik0.1
Teorik yön değiştirme boşluğu50
Mil çapı12.7
Mil hatvesi12.7
Montaj konumuHerhangi
KılavuzBilyalı rulman kafes kılavuzu
TasarımBilyalı vidalı
Motor tipiStep motor, Servo motor
Mil tipiBilyalı vida
Sembol00992069
Konum algılamaYaklaşım sensörü ile
Maks. ivme25
Maks. hız1
Tekrarlama hassasiyeti±0.015 mm
Çalışma oranı100%
Korozyon direnci sınıfı CRC0 - Korozyon zorlanması yok
LABS (PWIS) uygunluğuVDMA24364 bölge III
Ses basınç seviyesi65
Koruma sınıfıIP40
Ortam sıcaklığı0, 60
Sürekli besleme kuvveti200
Maks. tahrik torku1.017
Maks. kuvvet Fy490
Maks. kuvvet Fz490
Maks. moment Mx24.2
Maks. moment My22.6
Maks. moment Mz22.6
Tahrik milinde maks. radyal kuvvet260
Maks. besleme kuvveti Fx300
Yükten bağımsız sürtünme torku0.13
Referans efektif yük, yatay10
Referans değer efektif yük, dikey10
Çalışma yükünün kg başına kütle atalet momenti JL0.0409
Kütle atalet momenti JO0.2113
Besleme sabiti12.7
Bakım aralığıÖmür boyu yağlama
Hareketli kütle1490
Ürün ağırlığı3400
Montaj tipiDişi dişli, Merkezleme burçlu, Aksesuarlı
Malzemelere ilişkin notRoHS uyumlu
Kapak malzemesiPres döküm alüminyum, boyalı
Kılavuz ray malzemesiRulman çeliği
Gövde malzemesieloksallı
Boyunduruk plakası malzemesiDövme alüminyum alaşımı, eloksallı
Bilyalı vida somunu malzemesiRulman çeliği
Mil malzemesiRulman çeliği
Aksesuarlar 170
FESTO EGSL-BS-55-200-12.7P motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| EAMM-A-D40-87A-S1 | Axial kit · Mounting accessories | |
| EAMF-A-44A/B-55A | Motor flange · Mounting accessories | |
| EAMF-A-44A/B-70A | Motor flange · Mounting accessories | |
| EAMF-A-64A/C/D-100A | Motor flange · Mounting accessories | |
| EAMF-A-44A/B-57A | Motor flange · Mounting accessories | |
| EAMF-A-44A/B-87A | Motor flange · Mounting accessories | |
| EAMM-A-D40-55A | Axial kit · Mounting accessories | |
| EAMM-A-D40-57A | Axial kit · Mounting accessories | |
| EAMC-30-32-6.35-8 | Coupling · Mounting accessories | |
| EAMC-30-32-8-9 | Coupling · Mounting accessories | |
| ZBV-M5-7 | Connector sleeve · Mounting accessories | |
| EMGA-40-P-G3-SST-42 | Gear unit · Mounting accessories | |
| EMGA-40-P-G5-SST-42 | Gear unit · Mounting accessories | |
| EMGA-60-P-G3-SST-57 | Gear unit · Mounting accessories | |
| EMGA-60-P-G5-SST-57 | Gear unit · Mounting accessories | |
| EAMM-A-D40-70A | Axial kit · Mounting accessories | |
| EAMM-A-D40-87A | Axial kit · Mounting accessories | |
| EAMF-A-44A/B-40G | Motor flange · Mounting accessories | |
| EAMC-30-32-8-11 | Coupling · Mounting accessories | |
| SIES-8M-PS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PS-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-PO-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NS-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-2,5-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-5,0-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SIES-8M-NO-24V-K-10-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| EAMK-A-D40-44A/C | Coupling housing · Mounting accessories | |
| EAMC-30-32-8-10 | Coupling · Mounting accessories | |
| MUE-70/80 | Profile mounting · Cylinder mountings | |
| EAMC-30-32-8-14 | Coupling · Mounting accessories | |
| DHAA-G-G6-16-B8-25 | Adapter kit · Mounting accessories | |
| EASC-G1-55-500 | Covering · Mounting accessories | |
| SMT-8M-A | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| HMSV-71 | Adapter kit · Mounting accessories | |
| HMSV-72 | Adapter kit · Mounting accessories | |
| HMSV-74 | Adapter kit · Mounting accessories | |
| HMSV-75 | Adapter kit · Mounting accessories | |
| EAMM-U-60-D40-57A-91 | Parallel kit · Mounting accessories | |
| EAMM-U-60-D40-55A-91-S1 | Parallel kit · Mounting accessories | |
| EAMM-U-60-D40-57A-91-S1 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-70A-102 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-70A-102-S1 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-87A-102 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-87A-102-S1 | Parallel kit · Mounting accessories | |
| EAPM-G1-55-SLS | Switch lug · Mounting accessories | |
| DHAA-G-G6-12-B11-20 | Adapter kit · Mounting accessories | |
| DHAA-G-E8-45-B11-25 | Adapter kit · Mounting accessories | |
| EAMM-A-D40-55A-S1 | Axial kit · Mounting accessories | |
| EAMM-A-D40-57A-S1 | Axial kit · Mounting accessories | |
| EAMM-A-D40-70A-S1 | Axial kit · Mounting accessories | |
| EAMM-U-86-D40-88A-102 | Parallel kit · Mounting accessories | |
| EAMM-U-60-D40-40G-91-S1 | Parallel kit · Mounting accessories | |
| EAMM-A-D40-60H | Axial kit · Mounting accessories | |
| EAMM-U-60-D40-40G-91 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-60H-102-S1 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-60G-102-S1 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-60G-102 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-60H-102 | Parallel kit · Mounting accessories | |
| DHAA-D-E8-55-Q11-16 | Adapter kit · Mounting accessories | |
| EAMM-A-D40-40G-G2 | Axial kit · Mounting accessories | |
| EAMM-A-D40-40G-S1 | Axial kit · Mounting accessories | |
| EAMM-A-D40-60G | Axial kit · Mounting accessories | |
| EAMM-A-D40-60H-S1 | Axial kit · Mounting accessories | |
| EAMM-A-D40-60G-S1 | Axial kit · Mounting accessories | |
| DHAA-D-E8-55-Q11-16-E | Adapter kit · Mounting accessories | |
| EMGA-40-P-G3-EAS-40 | Gear unit · Mounting accessories | |
| EMGA-40-P-G5-EAS-40 | Gear unit · Mounting accessories | |
| EMGA-60-P-G3-EAS-60 | Gear unit · Mounting accessories | |
| EMGA-60-P-G5-EAS-60 | Gear unit · Mounting accessories | |
| DHAA-G-G3-20-B13-35 | Adapter kit · Mounting accessories | |
| DHAA-G-G6-16-B6-14 | Adapter kit · Mounting accessories | |
| EAMM-U-70-D40-60P-96-S1 | Parallel kit · Mounting accessories | |
| EAMM-U-70-D40-60P-96 | Parallel kit · Mounting accessories | |
| DHAA-D-E8-45/55-Q11-12 | Adapter kit · Mounting accessories | |
| EAMM-U-70-D40-60G-96 | Parallel kit · Mounting accessories | |
| EAMM-U-70-D40-60G-96-S1 | Parallel kit · Mounting accessories | |
| EAMM-U-70-D40-60H-96 | Parallel kit · Mounting accessories | |
| EAMM-U-70-D40-60H-96-S1 | Parallel kit · Mounting accessories | |
| EAMM-U-70-D40-70A-96 | Parallel kit · Mounting accessories | |
| EAMM-U-70-D40-70A-96-S1 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-80P-102 | Parallel kit · Mounting accessories | |
| EAMM-U-86-D40-80P-102-S1 | Parallel kit · Mounting accessories | |
| EMMT-AS-60- | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMB | Servo motor · Electrical accessories | |
| EMGA-40-A-G3-40P | Gear unit · Mounting accessories | |
| EMGA-40-A-G5-40P | Gear unit · Mounting accessories | |
| EAMM-A-D40-58AA | Axial kit · Mounting accessories | |
| EAMM-A-D40-60AA | Axial kit · Mounting accessories | |
| EAMM-A-D40-70AA | Axial kit · Mounting accessories | |
| EAMM-A-D40-50GA | Axial kit · Mounting accessories | |
| EAMM-A-D40-60RA | Axial kit · Mounting accessories | |
| EAMM-A-D40-60R | Axial kit · Mounting accessories | |
| EAMM-U-86-D40-80PB-102 | Parallel kit · Mounting accessories | |
| SMT-8M-A-NO-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| EMGA-40-P-G8-EAS-40 | Gear unit · Mounting accessories | |
| EMGA-40-P-G12-EAS-40 | Gear unit · Mounting accessories | |
| EMGA-40-P-G20-EAS-40 | Gear unit · Mounting accessories | |
| EMGA-40-A-G8-40P | Gear unit · Mounting accessories | |
| EMGA-40-A-G12-40P | Gear unit · Mounting accessories | |
| EMGA-40-A-G20-40P | Gear unit · Mounting accessories | |
| EMGA-60-P-G8-EAS-60 | Gear unit · Mounting accessories | |
| EMGA-60-P-G12-EAS-60 | Gear unit · Mounting accessories | |
| EMGA-60-P-G20-EAS-60 | Gear unit · Mounting accessories | |
| EMGA-40-P-G8-SST-42 | Gear unit · Mounting accessories | |
| EMGA-40-P-G12-SST-42 | Gear unit · Mounting accessories | |
| EMGA-60-P-G8-SST-57 | Gear unit · Mounting accessories | |
| EMGA-60-P-G12-SST-57 | Gear unit · Mounting accessories | |
| ZBH-7-B | Centring sleeve · Mounting accessories | |
| DHAA-G-E8-55-B24-36 | Adapter kit · Mounting accessories | |
| EMMT-AS-60-S-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMYB | Servo motor · Electrical accessories | |
| EAMM-U-60-D40-60P-61 | Parallel kit · Mounting accessories | |
| SMT-8M-A-ZS-24V-E-5,0-OE | Proximity switch · Cylinder sensors for direct mounting | |
| DHAA-G-E8-55-B24-28 | Adapter kit · Mounting accessories | |
| EAMM-A-D40-60P-G2 | Axial kit · Mounting accessories | |
| EAMM-A-D40-60P-S1-G2 | Axial kit · Mounting accessories |
İlgili Ürünler
Detayları Gör
Festo
YXCF-2
MFR #YXCF-2
SKU #YLSL6U6NTXCKHGD
Detayları Gör
Festo
YXCF-3
MFR #YXCF-3
SKU #YLSZVSBYGKJ08DU
Detayları Gör
Festo
YXCF-4
MFR #YXCF-4
SKU #YLSIOSKDCAW31TC
Detayları Gör
Festo
YXCF-1-B
MFR #YXCF-1-B
SKU #YLS8M1FM2JHSBU
Detayları Gör
Festo
YXCF-2-B
MFR #YXCF-2-B
SKU #YLSAJENB5OIQWGN
Detayları Gör
Festo
YXCL-1-D
MFR #YXCL-1-D
SKU #YLS74NKJF7W65BZ
Detayları Gör
Festo
YXCL-2-D
MFR #YXCL-2-D
SKU #YLS1RJGPTBKRKVF
Detayları Gör
Festo
YXCL-1
MFR #YXCL-1
SKU #YLSFPVVOW7GENV
Detayları Gör
Festo
YXCR-1
MFR #YXCR-1
SKU #YLSW4HQHDBEYOQG
Öne Çıkan Ürünler
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
İlgili Aramalar
FESTO EGSL-BS-55-200-12.7P fiyatFESTO EGSL-BS-55-200-12.7P teklif alFESTO EGSL-BS-55-200-12.7P satın alEGSL-BS-55-200-12.7P fiyatEGSL-BS-55-200-12.7P stok durumuFESTO yedek parçaFESTO EGSL-BS-55-200-12.7P muadilFESTO EGSL-BS-55-200-12.7P teknik özellikler
