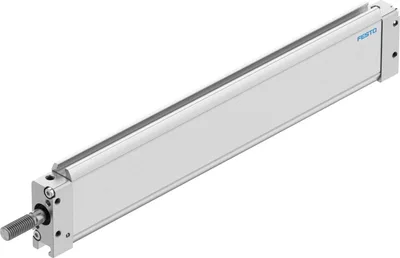

FESTO DZF-18-200-A-P-A
Yassı silindir. Son derece düz tasarım. Özel piston şekli sayesinde dönmeye karşı korumalı. Manifold montajı için ideal. Geniş montaj ve bağlantı seçenekleri. Dişi veya erkek dişli piston kolu. Konum algılama için. Uzatılmış kullanım ömrü ve kolay onarım sayesinde sürdürülebilir
Strok200
Piston çapı18 mm, Eşdeğer çap
Piston mili dişiM8
Piston milinde burulma boşluğu +/-1.2
Montaj konumuHerhangi
Çalışma şekliÇift etkili
Ürün Hakkında
Yassı silindir. Son derece düz tasarım. Özel piston şekli sayesinde dönmeye karşı korumalı. Manifold montajı için ideal. Geniş montaj ve bağlantı seçenekleri. Dişi veya erkek dişli piston kolu. Konum algılama için. Uzatılmış kullanım ömrü ve kolay onarım sayesinde sürdürülebilir
FESTO DZF-18-200-A-P-A
- Orijinal ve sertifikalı FESTO ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Strok200
Piston çapı18 mm, Eşdeğer çap
Piston mili dişiM8
Piston milinde burulma boşluğu +/-1.2
SönümlemeHer iki uçta elastik sönümleme halkaları/plakaları
Montaj konumuHerhangi
Çalışma şekliÇift etkili
TasarımPiston, Piston kolu
Konum algılamaYaklaşım sensörü ile
Sembol00991217
VaryantlarTek uçta piston kolu
Dönmeye karşı koruma/kılavuzOval piston
Çalışma basıncı0.1, 1
Çalışma basıncı1, 10
Çalışma ortamıISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Korozyon direnci sınıfı CRC2 - Orta korozyon yükü
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Ortam sıcaklığı-20, 80
Son konumlarda darbe enerjisi0.1
Dönmeye karşı koruma için maks. tork0.2
0.6 MPa (6 bar, 87 psi) basınçta teorik kuvvet, geri strok123
0.6 MPa (6 bar, 87 psi)'da teorik kuvvet, ileri strok153
0 mm strok için hareketli kütle24
10 mm strok başına ek hareketli kütle4
10 mm strok başına ek ağırlık13
0 mm strok için temel ağırlık107
Montaj tipiDişi dişli, Aksesuarlarla
Pnömatik bağlantıM5
Kapak malzemesiDövme alüminyum alaşımı
Sızdırmazlık malzemesiNBR, TPE-U(PU)
Gövde malzemesiEloksallı dövme alüminyum alaşımı
Piston contası malzemesiNBR
Piston kolu malzemesiYüksek alaşımlı paslanmaz çelik
Aksesuarlar 160
FESTO DZF-18-200-A-P-A motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| FK-M8 | Self-aligning rod coupler · Piston-rod attachments | |
| PUN-H-4X0,75-NT | Plastic tubing · Tubes | |
| SG-M8 | Rod clevis · Piston-rod attachments | |
| PUN-H-4X0,75-BL | Plastic tubing · Tubes | |
| SGS-M8 | Rod eye · Piston-rod attachments | |
| PUN-H-4X0,75-SW | Plastic tubing · Tubes | |
| PUN-H-4X0,75-TBL | Plastic tubing · Tubes | |
| GRLA-M5-QS-4-D | One-way flow control valve · Function fittings | |
| VFOE-LE-T-M5-Q4 | One-way flow control valve · Function fittings | |
| HZF-18 | Foot mounting · Cylinder mountings | |
| FZF-18 | Flange mounting · Cylinder mountings | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SZF-18 | Swivel flange · Cylinder mountings | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| QSM-M5-4 | Push-in fitting · Fittings | |
| QSM-M5-4-I | Push-in fitting · Fittings | |
| QSML-M5-4 | Push-in L-fitting · Fittings | |
| CK-M5-PK-3 | Quick connector · Quick connectors | |
| CK-M5-PK-4 | Quick connector · Quick connectors | |
| N-M5-PK-3 | Barbed fitting · Barbed fittings | |
| LCK-M5-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-3 | T-quick connector · Quick connectors | |
| LCK-M5-PK-4 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-4 | T-quick connector · Quick connectors | |
| N-M5-PK-4 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-3 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-4 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-M5-PK-4 | Barbed T-fitting · Barbed fittings | |
| CN-M5-PK-2 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-2 | Barbed T-fitting · Barbed fittings | |
| LCNH-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| KSZ-M8 | Coupling piece · Piston rod attachments | |
| QSM-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-5/32-I-U-M | Push-in fitting · Push-in fittings | |
| QSML-M5-3-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6-100 | Push-in L-fitting · Push-in fittings | |
| QSM-M5-3-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-100 | Push-in fitting · Push-in fittings | |
| QSMT-M5-4-100 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6-100 | Push-in T-fitting · Push-in fittings | |
| QSMLV-M5-3-I | Push-in L-fitting · Push-in fittings | |
| QSMLV-M5-4-I | Push-in L-fitting · Push-in fittings | |
| QSMLLV-M5-3-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLLV-M5-4-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-3 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-3-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R | Push-in fitting · Push-in fittings | |
| QSMLL-M5-3-100 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-2 | Push-in fitting · Push-in fittings | |
| QSML-M5-2 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-2 | Push-in L-fitting, long · Push-in fittings | |
| SME-8-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-S-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| GRLA-M5-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-3-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-4-B | One-way flow control valve · Function fittings | |
| GRLA-M5-RS-B | One-way flow control valve · Function fittings | |
| GRLO-M5-B | Throttle valve · Function fittings | |
| GRLO-M5-PK-3-B | Throttle valve · Function fittings | |
| ABP-5-S | Slot cover · Mounting accessories | |
| SME-8-K-LED-230 | Proximity sensor · Cylinder sensors for direct mounting | |
| QSMK-M5-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-M5-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-M5-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-M5-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSM-M5-3 | Push-in fitting · Push-in fittings | |
| QSM-M5-6 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I | Push-in fitting · Push-in fittings | |
| QSML-M5-3 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSR-M5-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-M5-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-M5-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-M5-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| AD-M8-1/8 | Adapter · Piston rod attachments | |
| AD-M8-1/4 | Adapter · Piston rod attachments | |
| SME-8-O-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-K-24-S6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-ZS-KL-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| GRLA-M5-QS-3-LF-C | One-way flow control valve · Function fittings | |
| GRLO-M5-QS-3-LF-C | Throttle valve · Function fittings | |
| GRLA-M5-QS-4-LF-C | One-way flow control valve · Function fittings | |
| GRLO-M5-QS-4-LF-C | Throttle valve · Function fittings | |
| SME-8-K5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMB-8E | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| QSM-M5-1/8-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-3/16-I-U-M | Push-in fitting · Push-in fittings | |
| QSLV-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSY-M5-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-M5-6 | Push-in Y-fitting · Push-in fittings | |
| QS-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| GRLA-M5-QS-3-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-3-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-4-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-RS-D | One-way flow control valve · Function fittings | |
| HGL-M5-B | Piloted check valve · Function fittings | |
| HGL-M5-QS-4 | Piloted check valve · Function fittings | |
| SME-8-K-7,5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMBK-8 | Clip · Mounting accessories | |
| SMBN-10 | Mounting · Mounting kits for proximity sensors, other sensors | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMM-8 | Positioning element · Mounting accessories | |
| SMAT-8M-U-E-0,3-M8D | Position transmitter · Cylinder sensors for direct mounting | |
| SMT-8-SL-PS-LED-24-B | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-5-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-10-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-D-2M5-M | Double nipple · Other connectors | |
| NPFC-R-G18-M5-FM | Reducing nipple · Other connectors | |
| NEAU-A-N8-1 | Mounting · Mounting accessories | |
| NEAU-A-N8-2 | Mounting · Mounting accessories | |
| SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE | Position transmitter · Cylinder sensors for direct mounting | |
| NPFC-E1-2M5-FM | Extension · Other connectors | |
| NPFC-R-M5-M3-MF | Reducing nipple · Other connectors | |
| SMT-8M-A-NO-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-DS-M5-M5-M | Double nipple · Other connectors | |
| SMT-8M-A-ZS-24V-E-5,0-OE | Proximity switch · Cylinder sensors for direct mounting | |
| DARP-M8-F | Self-aligning rod coupler · Stainless-steel piston-rod attachments | |
| SDBT-MS-20NL-ZN-E-2.5-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-20-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting |
İlgili Ürünler
Detayları Gör
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
Detayları Gör
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
Detayları Gör
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
Detayları Gör
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
Detayları Gör
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
Detayları Gör
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
Detayları Gör
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
Detayları Gör
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
Detayları Gör
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Öne Çıkan Ürünler
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
İlgili Aramalar
FESTO DZF-18-200-A-P-A fiyatFESTO DZF-18-200-A-P-A teklif alFESTO DZF-18-200-A-P-A satın alDZF-18-200-A-P-A fiyatDZF-18-200-A-P-A stok durumuFESTO yedek parçaFESTO DZF-18-200-A-P-A muadilFESTO DZF-18-200-A-P-A teknik özellikler
