Detayları Gör
Festo
DSL-16- -270-P-A-S20-B
MFR #DSL-16- -270-P-A-S20-B
SKU #YLSNFXC2ASVOIXP
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

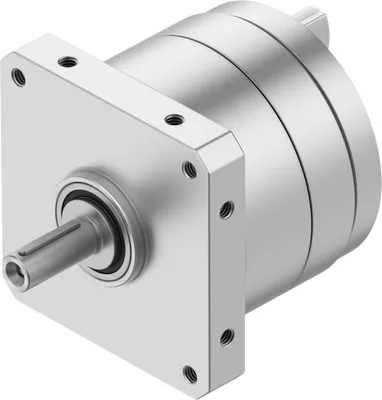

FESTO DSM-T-12-270-A-B
Yarı döner tahrik. Yarı döner kanatlı tahrik. Pimli mil, flanşlı içi boş mil, tandem döner kanat ve pimli mil, tandem döner kanat ve flanşlı mil veya ağır hizmet yatağı (HD) ile
Boyut12
Dönüş açısı0, 270
İzin verilen durma yarıçapı15
Montaj konumuHerhangi
Çalışma şekliÇift etkili
TasarımKanatlı
Ürün Hakkında
Yarı döner tahrik. Yarı döner kanatlı tahrik. Pimli mil, flanşlı içi boş mil, tandem döner kanat ve pimli mil, tandem döner kanat ve flanşlı mil veya ağır hizmet yatağı (HD) ile
FESTO DSM-T-12-270-A-B
- Orijinal ve sertifikalı FESTO ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Boyut12
Dönüş açısı0, 270
İzin verilen durma yarıçapı15
Montaj konumuHerhangi
Çalışma şekliÇift etkili
TasarımKanatlı
Konum algılamaYok
Sembol00991265
Çalışma basıncı0.25, 1
Çalışma basıncı2.5, 10
0.6 MPa (6 bar, 87 psi)'da maks. salınım frekansı2
Çalışma ortamıISO 8573-1:2010 [7:-:-]'e göre basınçlı hava
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Korozyon direnci sınıfı CRC0 - Korozyon zorlanması yok
LABS (PWIS) uygunluğuVDMA24364-B2-L
Ortam sıcaklığı-10, 60
Maks. durdurma kuvveti90
Maks. eksenel kuvvet18
Maks. radyal kuvvet45
0.6 MPa (6 bar, 87 psi)'da teorik tork2.5
Ürün ağırlığı330
Montaj tipiDişi dişli
Pnömatik bağlantıM5
Malzemelere ilişkin notRoHS uyumlu
Tahrik mili malzemesiÇelik, nikel kaplı
Sızdırmazlık malzemesiTPE-U(PU)
Gövde malzemesiEloksallı alüminyum
Aksesuarlar 114
FESTO DSM-T-12-270-A-B motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| AKM-12 | Cover cap · Mounting accessories | |
| FWSR-12 | Push-on flange · Mounting accessories | |
| QSM-M5-4 | Push-in fitting · Fittings | |
| SMT-10M-PS-24V-E-0,3-L-M8D | Proximity sensor · Proximity sensors | |
| QSML-M5-4 | Push-in L-fitting · Fittings | |
| GRLA-M5-QS-4-D | One-way flow control valve · Function fittings | |
| PUN-H-4X0,75-BL | Plastic tubing · Tubes | |
| SMT-10M-PS-24V-E-2,5-L-OE | Proximity sensor · Proximity sensors | |
| SMT-10M-NS-24V-E-2,5-L-OE | Proximity sensor · Proximity sensors | |
| SMT-10M-NS-24V-E-0,3-L-M8D | Proximity sensor · Proximity sensors | |
| PUN-H-4X0,75-NT | Plastic tubing · Tubes | |
| PUN-H-4X0,75-SW | Plastic tubing · Tubes | |
| PUN-H-4X0,75-TBL | Plastic tubing · Tubes | |
| QSM-M5-4-I | Push-in fitting · Fittings | |
| VFOE-LE-T-M5-Q4 | One-way flow control valve · Function fittings | |
| CK-M5-PK-3 | Quick connector · Quick connectors | |
| CK-M5-PK-4 | Quick connector · Quick connectors | |
| N-M5-PK-3 | Barbed fitting · Barbed fittings | |
| LCK-M5-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-3 | T-quick connector · Quick connectors | |
| LCK-M5-PK-4 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-4 | T-quick connector · Quick connectors | |
| N-M5-PK-4 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-3 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-4 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-M5-PK-4 | Barbed T-fitting · Barbed fittings | |
| CN-M5-PK-2 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-2 | Barbed T-fitting · Barbed fittings | |
| LCNH-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| QSM-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-5/32-I-U-M | Push-in fitting · Push-in fittings | |
| QSML-M5-3-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6-100 | Push-in L-fitting · Push-in fittings | |
| QSM-M5-3-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-100 | Push-in fitting · Push-in fittings | |
| QSMT-M5-4-100 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6-100 | Push-in T-fitting · Push-in fittings | |
| QSMLV-M5-3-I | Push-in L-fitting · Push-in fittings | |
| QSMLV-M5-4-I | Push-in L-fitting · Push-in fittings | |
| QSMLLV-M5-3-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLLV-M5-4-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-3 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-3-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R | Push-in fitting · Push-in fittings | |
| QSMLL-M5-3-100 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-2 | Push-in fitting · Push-in fittings | |
| QSML-M5-2 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-2 | Push-in L-fitting, long · Push-in fittings | |
| GRLA-M5-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-3-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-4-B | One-way flow control valve · Function fittings | |
| GRLA-M5-RS-B | One-way flow control valve · Function fittings | |
| QSMK-M5-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-M5-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-M5-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-M5-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSM-M5-3 | Push-in fitting · Push-in fittings | |
| QSM-M5-6 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I | Push-in fitting · Push-in fittings | |
| QSML-M5-3 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSR-M5-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-M5-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-M5-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-M5-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| HAPG-17 | Adapter kit · Piston rod attachments | |
| FLSM-12-L | Free wheel unit · General accessories | |
| FLSM-12-R | Free wheel unit · General accessories | |
| HSM-12 | Mounting plate · Cylinder mountings | |
| GRLA-M5-QS-3-LF-C | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-4-LF-C | One-way flow control valve · Function fittings | |
| QSM-M5-1/8-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-3/16-I-U-M | Push-in fitting · Push-in fittings | |
| QSLV-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSY-M5-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-M5-6 | Push-in Y-fitting · Push-in fittings | |
| QS-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| GRLA-M5-QS-3-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-3-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-4-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-RS-D | One-way flow control valve · Function fittings | |
| HGL-M5-B | Piloted check valve · Function fittings | |
| HGL-M5-QS-4 | Piloted check valve · Function fittings | |
| SL-DSM-B | Sensor bracket · Mounting kits for proximity sensors, other sensors | |
| SL-DSM-S-M5-B | Sensor bracket · Mounting kits for proximity sensors, other sensors | |
| SL-DSM-S-M8-B | Sensor bracket · Mounting kits for proximity sensors, other sensors | |
| NPFC-D-2M5-M | Double nipple · Other connectors | |
| NPFC-R-G18-M5-FM | Reducing nipple · Other connectors | |
| NPFC-E1-2M5-FM | Extension · Other connectors | |
| NPFC-R-M5-M3-MF | Reducing nipple · Other connectors | |
| NPFC-DS-M5-M5-M | Double nipple · Other connectors |
