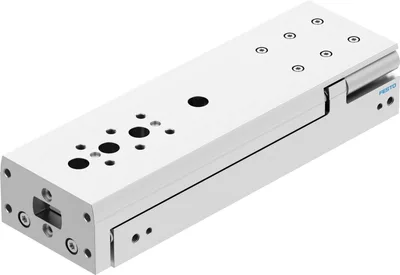

Festo DGST-16-125-Y12A
Mini kızak. Güçlü çift pistonlu tahrik. Piyasadaki en kısa mini kızak. Hassas bilyalı sirkülasyonlu yatak kılavuzu. Çok yönlü montaj seçenekleri. Kompakt montaj için aynalanmış besleme portu yapılandırmasına ve sensör yuvalarına sahip versiyon, konfigüratör üzerinden sipariş edilebilir. Lityum iyon batarya üretim sistemleri için önerilen varyantlar. Azaltılmış malzeme kullanımı sayesinde sürdürülebilir üretim
Strok125
Piston çapı16 mm
Çalışma modu, tahrik ünitesiBoyunduruk
SönümlemeHarici hidrolik sönümleme
Montaj konumuHerhangi
KılavuzBilyalı sirkülasyonlu rulman kılavuzu
Ürün Hakkında
Mini kızak. Güçlü çift pistonlu tahrik. Piyasadaki en kısa mini kızak. Hassas bilyalı sirkülasyonlu yatak kılavuzu. Çok yönlü montaj seçenekleri. Kompakt montaj için aynalanmış besleme portu yapılandırmasına ve sensör yuvalarına sahip versiyon, konfigüratör üzerinden sipariş edilebilir. Lityum iyon batarya üretim sistemleri için önerilen varyantlar. Azaltılmış malzeme kullanımı sayesinde sürdürülebilir üretim
Festo DGST-16-125-Y12A
- Orijinal ve sertifikalı Festo ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Strok125
Ayarlanabilir son konum aralığı/uzunluğu ön16.9
Ayarlanabilir son konum aralığı/uzunluğu arka15.5
Piston çapı16 mm
Çalışma modu, tahrik ünitesiBoyunduruk
SönümlemeHarici hidrolik sönümleme
Montaj konumuHerhangi
KılavuzBilyalı sirkülasyonlu rulman kılavuzu
TasarımBoyunduruk, Piston kolu, Kızak
Konum algılamaYaklaşım sensörü ile
Sembol00991249
Çalışma basıncı0.1, 0.8
Çalışma basıncı1, 8
Çalışma basıncı14.5, 116
Maks. hız0.8
Tekrarlama hassasiyeti<= 0.02 mm
Çalışma şekliÇift etkili
Çalışma ortamıISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Korozyon direnci sınıfı CRC1 - Düşük korozyon yükü
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Temiz oda uygunluğu, ISO 14644-14'e göre ölçülmüştürISO 14644-1'e göre Sınıf 6
Ortam sıcaklığı-10, 60
Son konumlarda darbe enerjisi2
Yastıklama uzunluğu5
Maks. kuvvet Fy960
Maks. kuvvet Fz960
Maks. moment Mx14
Maks. moment My15
Maks. moment Mz15
0.6 MPa (6 bar, 87 psi) basınçta teorik kuvvet, geri strok207
0.6 MPa (6 bar, 87 psi)'da teorik kuvvet, ileri strok241
Hareketli kütle670
Ürün ağırlığı1360
Montaj tipiGeçme delikli
Pnömatik bağlantıM5
Malzemelere ilişkin notRoHS uyumlu
Kapak malzemesiDövme alüminyum alaşımı
Sızdırmazlık malzemesiHNBR
Kılavuz malzemesiPOM, TPE-E, Yüksek alaşımlı çelik
Gövde malzemesiDövme alüminyum alaşımı
Piston kolu malzemesiYüksek alaşımlı paslanmaz çelik
Aksesuarlar 158
Festo DGST-16-125-Y12A motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| QSM-M5-4 | Push-in fitting · Fittings | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| PUN-H-4X0,75-BL | Plastic tubing · Tubes | |
| GRLA-M5-QS-4-D | One-way flow control valve · Function fittings | |
| VFOE-LE-T-M5-Q4 | One-way flow control valve · Function fittings | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| PUN-H-4X0,75-NT | Plastic tubing · Tubes | |
| PUN-H-4X0,75-SW | Plastic tubing · Tubes | |
| PUN-H-4X0,75-TBL | Plastic tubing · Tubes | |
| QSM-M5-4-I | Push-in fitting · Fittings | |
| QSML-M5-4 | Push-in L-fitting · Fittings | |
| ZBH-9-B | Centring sleeve · Mounting accessories | |
| ZBH-5-B | Centring sleeve · Mounting accessories | |
| ZBH-7-B | Centring sleeve · Mounting accessories | |
| GASA-MIP-CTR-12M-10 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-100 | AX Industrial App · Digital services | |
| GASA-MIP-CTR-12M-1000 | AX Industrial App · Digital services | |
| CK-M5-PK-3 | Quick connector · Quick connectors | |
| CK-M5-PK-4 | Quick connector · Quick connectors | |
| N-M5-PK-3 | Barbed fitting · Barbed fittings | |
| LCK-M5-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-3 | T quick connector · Quick connectors | |
| LCK-M5-PK-4 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-4 | T quick connector · Quick connectors | |
| N-M5-PK-4 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-3 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-4 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-M5-PK-4 | Barbed T-fitting · Barbed fittings | |
| CN-M5-PK-2 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-2 | Barbed T-fitting · Barbed fittings | |
| LCNH-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| QSM-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-5/32-I-U-M | Push-in fitting · Push-in fittings | |
| QSML-M5-3-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6-100 | Push-in L-fitting · Push-in fittings | |
| QSM-M5-3-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-100 | Push-in fitting · Push-in fittings | |
| QSMT-M5-4-100 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6-100 | Push-in T-fitting · Push-in fittings | |
| QSMLV-M5-3-I | Push-in L-fitting · Push-in fittings | |
| QSMLV-M5-4-I | Push-in L-fitting · Push-in fittings | |
| QSMLLV-M5-3-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLLV-M5-4-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-3 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-3-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R | Push-in fitting · Push-in fittings | |
| QSMLL-M5-3-100 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-2 | Push-in fitting · Push-in fittings | |
| QSML-M5-2 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-2 | Push-in L-fitting, long · Push-in fittings | |
| GRLA-M5-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-3-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-4-B | One-way flow control valve · Function fittings | |
| GRLA-M5-RS-B | One-way flow control valve · Function fittings | |
| QSMK-M5-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-M5-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-M5-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-M5-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSM-M5-3 | Push-in fitting · Push-in fittings | |
| QSM-M5-6 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I | Push-in fitting · Push-in fittings | |
| QSML-M5-3 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSR-M5-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-M5-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-M5-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-M5-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| GRLA-M5-QS-3-LF-C | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-4-LF-C | One-way flow control valve · Function fittings | |
| QSM-M5-1/8-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-3/16-I-U-M | Push-in fitting · Push-in fittings | |
| QSLV-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSY-M5-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-M5-6 | Push-in Y-fitting · Push-in fittings | |
| QS-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| GRLA-M5-QS-3-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-3-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-4-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-RS-D | One-way flow control valve · Function fittings | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8G-PS-24V-E-2,5Q-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8G-PS-24V-E-0,3Q-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMAT-8M-U-E-0,3-M8D | Position transmitter · Cylinder sensors for direct mounting | |
| SMT-8M-A | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SDAT-MHS-M125-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| NPFC-D-2M5-M | Double nipple · Other connectors | |
| NPFC-R-G18-M5-FM | Reducing nipple · Other connectors | |
| NEAU-A-N8-1 | Mounting · Mounting accessories | |
| NEAU-A-N8-2 | Mounting · Mounting accessories | |
| SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE | Position transmitter · Cylinder sensors for direct mounting | |
| SMT-8G-NS-24V-E-0,3Q-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8G-NS-24V-E-2,5Q-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-E1-2M5-FM | Extension · Other connectors | |
| NPFC-R-M5-M3-MF | Reducing nipple · Other connectors | |
| DYSS-G8-7-5-Y1F | Shock absorber · Mounting accessories | |
| SDAT-MHS-M125-1L-SV-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| ZBH-5-M4 | Centring sleeve · Mounting accessories | |
| SMT-8M-A-NO-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-DS-M5-M5-M | Double nipple · Other connectors | |
| DADP-ES-G8-16 | Shock absorber retainer · Mounting accessories | |
| DADG-AK-G8-16-125 | Connection kit · Connection accessories | |
| DHAA-D-G8-H-20-80-G8-16-50 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-20-10-G8-16-10 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-20-125-G8-16-100 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-16-B20-16 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-16-125-G8-16-100 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-16-10-G8-16-10 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-16-50-G8-16-40 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-16-100-G8-16-80 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-16-10-G8-12-10 | Adapter kit · Mounting accessories | |
| DHAA-D-G8-H-16-50-G8-12-40 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-16-B18-16 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-16-B12-25 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-16-B8-25 | Adapter kit · Mounting accessories | |
| DHAA-G-G8-16-B8G-25 | Adapter kit · Mounting accessories | |
| SMT-8M-A-ZS-24V-E-5,0-OE | Proximity switch · Cylinder sensors for direct mounting | |
| DHAA-D-G8-25-G8-16 | Adapter kit · Mounting accessories | |
| ZBH-5 | Centring sleeve · Mounting accessories |
İlgili Ürünler
Detayları Gör
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
Detayları Gör
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
Detayları Gör
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
Detayları Gör
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
Detayları Gör
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
Detayları Gör
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
Detayları Gör
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
Detayları Gör
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
Detayları Gör
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Öne Çıkan Ürünler
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
İlgili Aramalar
Festo DGST-16-125-Y12A fiyatFesto DGST-16-125-Y12A teklif alFesto DGST-16-125-Y12A satın alDGST-16-125-Y12A fiyatDGST-16-125-Y12A stok durumuFesto yedek parçaFesto DGST-16-125-Y12A muadilFesto DGST-16-125-Y12A teknik özellikler
