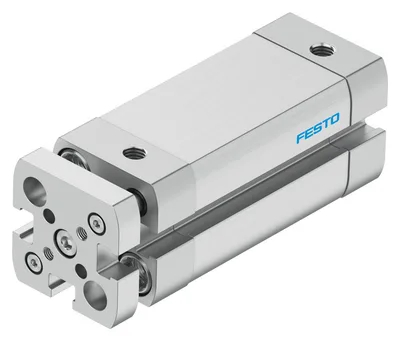

FESTO ADNGF-12-30-P-A
Kompakt silindir. Konum algılama için. ISO 21287'ye uygun standart silindirler. İyi çalışma performansı ve uzun kullanım ömrü. Sabit veya kendinden ayarlı yastıklamalı. İsteğe bağlı olarak çift taraflı piston kolu ile
Strok30
Piston çapı12 mm
Dayandığı standartISO 21287
Montaj konumuHerhangi
TasarımPiston, Piston kolu, Profil gövde
Konum algılamaYaklaşım sensörü ile
Ürün Hakkında
Kompakt silindir. Konum algılama için. ISO 21287'ye uygun standart silindirler. İyi çalışma performansı ve uzun kullanım ömrü. Sabit veya kendinden ayarlı yastıklamalı. İsteğe bağlı olarak çift taraflı piston kolu ile
FESTO ADNGF-12-30-P-A
- Orijinal ve sertifikalı FESTO ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Strok30
Piston çapı12 mm
Dayandığı standartISO 21287
SönümlemeHer iki uçta elastik sönümleme halkaları/plakaları
Montaj konumuHerhangi
TasarımPiston, Piston kolu, Profil gövde
Konum algılamaYaklaşım sensörü ile
Dönmeye karşı koruma/kılavuzBoyunduruklu kılavuz mili
Çalışma basıncı0.15, 1
Çalışma basıncı1.5, 10
Çalışma şekliÇift etkili
Çalışma ortamıISO 8573-1:2010 [7:4:4]'e göre basınçlı hava
Çalışma ve pilot ortamı hakkında notYağlı çalışma mümkündür (bu durumda her zaman yağlı çalışma gerekir)
Korozyon direnci sınıfı CRC2 - Orta korozyon yükü
LABS (PWIS) uygunluğuVDMA24364-B1/B2-L
Ortam sıcaklığı-20, 80
Son konumlarda darbe enerjisi0.07
0.6 MPa (6 bar, 87 psi) basınçta teorik kuvvet, geri strok51
0.6 MPa (6 bar, 87 psi)'da teorik kuvvet, ileri strok68
Hareketli kütle30
Ürün ağırlığı119
Pnömatik bağlantıM5
Malzemelere ilişkin notRoHS uyumlu
Yakalı vida malzemesiÇelik
Kapak malzemesiEloksallı dövme alüminyum alaşımı
Sızdırmazlık malzemesiTPE-U(PUR)
Uç plaka malzemesiEloksallı dövme alüminyum alaşımı
Piston kolu malzemesiYüksek alaşımlı çelik
Silindir gömleği malzemesiPürüzsüz eloksallı dövme alüminyum alaşımı
Aksesuarlar 149
FESTO ADNGF-12-30-P-A motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| QSM-M5-4 | Push-in fitting · Fittings | |
| QSML-M5-4 | Push-in L-fitting · Fittings | |
| GRLA-M5-QS-4-D | One-way flow control valve · Function fittings | |
| PUN-H-4X0,75-BL | Plastic tubing · Tubes | |
| PUN-H-4X0,75-NT | Plastic tubing · Tubes | |
| PUN-H-4X0,75-SW | Plastic tubing · Tubes | |
| PUN-H-4X0,75-TBL | Plastic tubing · Tubes | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| FNC-12 | Flange mounting · Cylinder mountings | |
| SNCL-12 | Swivel flange · Cylinder mountings | |
| VFOE-LE-T-M5-Q4 | One-way flow control valve · Function fittings | |
| QSM-M5-4-I | Push-in fitting · Fittings | |
| CK-M5-PK-3 | Quick connector · Quick connectors | |
| CK-M5-PK-4 | Quick connector · Quick connectors | |
| N-M5-PK-3 | Barbed fitting · Barbed fittings | |
| LCK-M5-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-3 | T-quick connector · Quick connectors | |
| LCK-M5-PK-4 | Elbow quick connector · Quick connectors | |
| TCK-M5-PK-4 | T-quick connector · Quick connectors | |
| N-M5-PK-4 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-3 | Barbed fitting · Barbed fittings | |
| CN-M5-PK-4 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-M5-PK-4 | Barbed T-fitting · Barbed fittings | |
| CN-M5-PK-2 | Barbed fitting · Barbed fittings | |
| LCN-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| TCN-M5-PK-2 | Barbed T-fitting · Barbed fittings | |
| LCNH-M5-PK-2 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-M5-PK-4 | Barbed elbow fitting · Barbed fittings | |
| QSM-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-5/32-I-U-M | Push-in fitting · Push-in fittings | |
| QSML-M5-3-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6-100 | Push-in L-fitting · Push-in fittings | |
| QSM-M5-3-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-100 | Push-in fitting · Push-in fittings | |
| QSMT-M5-4-100 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6-100 | Push-in T-fitting · Push-in fittings | |
| QSMLV-M5-3-I | Push-in L-fitting · Push-in fittings | |
| QSMLV-M5-4-I | Push-in L-fitting · Push-in fittings | |
| QSMLLV-M5-3-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLLV-M5-4-I | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-3 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-3-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R-100 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-4-I-R | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I-R | Push-in fitting · Push-in fittings | |
| QSMLL-M5-3-100 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSM-M5-2 | Push-in fitting · Push-in fittings | |
| QSML-M5-2 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-2 | Push-in L-fitting, long · Push-in fittings | |
| SME-8-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-S-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| GRLA-M5-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-3-B | One-way flow control valve · Function fittings | |
| GRLA-M5-PK-4-B | One-way flow control valve · Function fittings | |
| GRLA-M5-RS-B | One-way flow control valve · Function fittings | |
| GRLO-M5-B | Throttle valve · Function fittings | |
| GRLO-M5-PK-3-B | Throttle valve · Function fittings | |
| ABP-5-S | Slot cover · Mounting accessories | |
| SME-8-K-LED-230 | Proximity sensor · Cylinder sensors for direct mounting | |
| QSMK-M5-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-M5-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-M5-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-M5-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSM-M5-3 | Push-in fitting · Push-in fittings | |
| QSM-M5-6 | Push-in fitting · Push-in fittings | |
| QSM-M5-3-I | Push-in fitting · Push-in fittings | |
| QSM-M5-6-I | Push-in fitting · Push-in fittings | |
| QSML-M5-3 | Push-in L-fitting · Push-in fittings | |
| QSML-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-M5-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-M5-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-3 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-M5-6 | Push-in T-fitting · Push-in fittings | |
| QSR-M5-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-M5-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-M5-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-M5-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| SME-8-O-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-K-24-S6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-ZS-KL-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| GRLA-M5-QS-3-LF-C | One-way flow control valve · Function fittings | |
| GRLO-M5-QS-3-LF-C | Throttle valve · Function fittings | |
| GRLA-M5-QS-4-LF-C | One-way flow control valve · Function fittings | |
| GRLO-M5-QS-4-LF-C | Throttle valve · Function fittings | |
| SME-8-K5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| QSM-M5-1/8-I-U-M | Push-in fitting · Push-in fittings | |
| QSM-M5-3/16-I-U-M | Push-in fitting · Push-in fittings | |
| QSLV-M5-6 | Push-in L-fitting · Push-in fittings | |
| QSY-M5-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-M5-6 | Push-in Y-fitting · Push-in fittings | |
| QS-M5-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| GRLA-M5-QS-3-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-3-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-4-RS-D | One-way flow control valve · Function fittings | |
| GRLA-M5-QS-6-RS-D | One-way flow control valve · Function fittings | |
| HGL-M5-B | Piloted check valve · Function fittings | |
| HGL-M5-QS-4 | Piloted check valve · Function fittings | |
| SME-8-K-7,5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SNCL-12-R3 | Swivel flange · Cylinder mountings | |
| SMBN-10 | Mounting · Mounting kits for proximity sensors, other sensors | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8-SL-PS-LED-24-B | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-5-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-10-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-D-2M5-M | Double nipple · Other connectors | |
| NPFC-R-G18-M5-FM | Reducing nipple · Other connectors | |
| NEAU-A-N8-1 | Mounting · Mounting accessories | |
| NEAU-A-N8-2 | Mounting · Mounting accessories | |
| SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE | Position transmitter · Cylinder sensors for direct mounting | |
| NPFC-E1-2M5-FM | Extension · Other connectors | |
| NPFC-R-M5-M3-MF | Reducing nipple · Other connectors | |
| SMT-8M-A-NO-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-DS-M5-M5-M | Double nipple · Other connectors | |
| SMT-8M-A-ZS-24V-E-5,0-OE | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-2.5-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-20-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting |
İlgili Ürünler
Detayları Gör
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Detayları Gör
Festo
DDPC-...-80- -
MFR #DDPC-...-80- -
SKU #YLS4SHYOTSRTIP
Detayları Gör
Festo
AEVUZ-12- -P-A
MFR #AEVUZ-12- -P-A
SKU #YLSCKLUCYWUPXLU
Detayları Gör
Festo
AEVUZ-12- -A-P-A
MFR #AEVUZ-12- -A-P-A
SKU #YLSTV5C7OJHR5U
Detayları Gör
Festo
AEVU-12- -P-A
MFR #AEVU-12- -P-A
SKU #YLS3TZ4SLKMP3F9
Detayları Gör
Festo
AEVU-12- -A-P-A
MFR #AEVU-12- -A-P-A
SKU #YLS3HRQPDAIT8C
Detayları Gör
Festo
SLG-8- -
MFR #SLG-8- -
SKU #YLS9SOTFXFPKQRQ
Detayları Gör
Festo
SLG-12- -
MFR #SLG-12- -
SKU #YLS9BK0KMC5LER
Detayları Gör
Festo
ADVU-12- -P-A
MFR #ADVU-12- -P-A
SKU #YLS0CS8PIQ6XHGN
Öne Çıkan Ürünler
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
İlgili Aramalar
FESTO ADNGF-12-30-P-A fiyatFESTO ADNGF-12-30-P-A teklif alFESTO ADNGF-12-30-P-A satın alADNGF-12-30-P-A fiyatADNGF-12-30-P-A stok durumuFESTO yedek parçaFESTO ADNGF-12-30-P-A muadilFESTO ADNGF-12-30-P-A teknik özellikler
