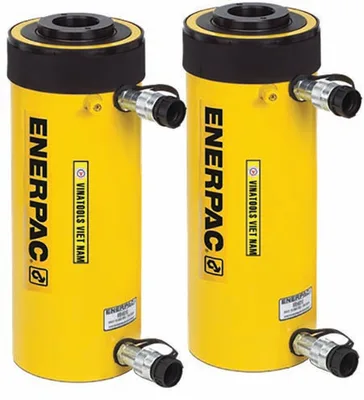

Enerpac RRH-1006 Hydraulic Rams
Hollow Plunge Cylinder - Double-Acting / Hydraulic Return, 100 ton Capacity, 6.000 in Stroke, 13.500 in Retracted, 19.500 in Extended
ITEM #69086d356a2c5290c11a72e0 MFR #RRH-1006 SKU #YLSKXQNZ80B65R7
Hızlı Özellikler
Series / Type: RRH-Series
Actuation: Double-Acting / Hydraulic Return
Cylinder Capacity: 100 ton
Pull Retract Cylinder Capacity: 68 ton
Stroke: 6.000 in
Oil Capacity: 123.760 in³
Genel Bakış
Hollow Plunge Cylinder - Double-Acting / Hydraulic Return, 100 ton Capacity, 6.000 in Stroke, 13.500 in Retracted, 19.500 in Extended
Özellikler ve Avantajlar
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing (except RRH-1001 and RRH-1508)
- Double-acting operation for fast retraction
- Nickel-plated, floating center tube increases product life
- Hollow plunger for pull and push forces
- CR-400 couplers and dust caps
- Plunger wiper reduces contamination, extending cylinder life
Teknik Özellikler
Series / Type RRH-Series
Actuation Double-Acting / Hydraulic Return
Cylinder Capacity 100 ton
Pull Retract Cylinder Capacity 68 ton
Stroke 6.000 in
Oil Capacity 123.760 in³
Pull Retract Oil Capacity 81.290 in³
Retracted Height 13.500 in
Extended Height 19.500 in
Effective Area 20.630 in²
Pull Retract Cylindrical Eff Area 13.540 in²
Tons at 10000 psi 103.00 ton
Piston Rod Diameter 5.000 in
Bore Size 6.500 in
Base to Port 1.500 in
Outside Diameter 8.380 in
Piston Rod Protrusion 0.500 in
Cylinder Material Steel
Weight 175.00 lbs
Manufacturer Product Page https://www.enerpac.com/en-us/cylinders/hollow-plunger-cylinder/RRH1006
Max Pressure 10000 psi
