Detayları Gör
Dodge
LFT-SXV-012-NL
MFR #LFT-SXV-012-NL
SKU #YLSKU43Z0BTGDGA
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.
Dodge SF4S-IP-303R

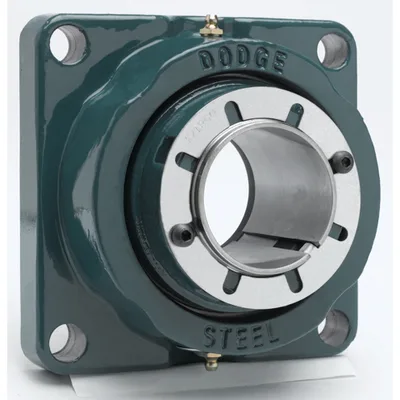

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-3/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Steel Housing
Bore Diameter3-3/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialSteel
Locking DeviceAdapter Mounted
Expansion TypeNon-Expansion Bearing (Fixed)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-3/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Steel Housing
Dodge SF4S-IP-303R
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter3-3/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialSteel
Locking DeviceAdapter Mounted
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length4.1700 in
SeriesSF4S-IP
Manufacturer Catalog Number072191
UPC_NO782476367824
Weight34.290 lbs
Dynamic Load Capacity65500 lbf
Housing Type4-Bolt Flange
Max Rpm1825 rpm
Static Load Capacity81500 lbf
Description072191 SF4S-IP-303R
Max Bolt Hole Spacing6.7200 in
Min Bolt Hole Spacing6.7200 in
Shaft AttachmentPush-Pull Adapter
Insert Outer Diameter160 mm
Housing DimensionsS-2000
Material072191
Sensor ReadyYes
Long DescriptionThe SF4S-IP-303R is a spherical roller bearing unit, 4-bolt flange type with a 3-3/16 in bore diameter, non-expansion (fixed) bearing. It features a steel housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the SF4S-IP series. The unit weighs 34.290 lbs.
