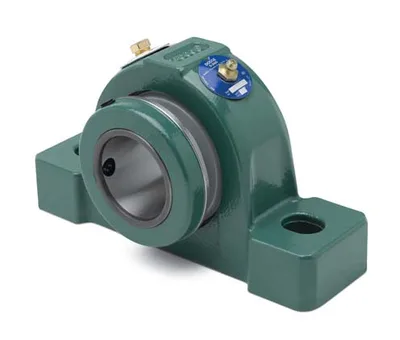

Dodge P2B-S2-207RE
Pillow Block Roller Bearing Unit - 2-7/16 in Bore, [delete} Mount, Set Screw Locking, Expansion Bearing (Floating), Cast Iron Housing Material, Standard Duty
Mounting[delete}
Bore Diameter2-7/16 in
Bolt Center To Center Length6.9400 to 7.3100 in
Base To Bore Centerline2.7500 in
Overall Length9-1/4 in
Locking DeviceSet Screw
Ürün Hakkında
Pillow Block Roller Bearing Unit - 2-7/16 in Bore, [delete} Mount, Set Screw Locking, Expansion Bearing (Floating), Cast Iron Housing Material, Standard Duty
Özellikler ve Avantajlar
- Interchangeable with Type E style pillow blocks and flanges
- Same proven DODGE S-2000 double row spherical insert
- 65° springlock collar mounting
- Up to ±1° misalignment capability
- Seal land on OD of inner ring maintains full contact pressure even when misaligned
- High capacity double row spherical bearing
Dodge P2B-S2-207RE
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Mounting[delete}
Bore Diameter2-7/16 in
Bolt Center To Center Length6.9400 to 7.3100 in
Base To Bore Centerline2.7500 in
Overall Length9-1/4 in
Locking DeviceSet Screw
Housing MaterialCast Iron
Housing ConstructionSolid
Type Of BearingSpherical Roller
Overall Height5.5900 in
Duty TypeStandard Duty
Base Width2.8100 in
Expansion TypeExpansion Bearing (Floating)
Finish CoatingBlack Oxide
Overall Width3.2000 in
Seal TypeTriple Lip
Radial Dynamic Load Capacity39000 lbf
Radial Static Load Capacity47500 lbf
Length Through Bore3.2000 in
Lubrication TypeLubrication Fitting
Replacement Bearing22213
Insert MaterialSteel
LubricationGrease
Grease TypeMobilGrease XHP222
Bore Length3.2000 in
Dynamic Load Capacity39000 lbf
Max Rpm1740 rpm
Static Load Capacity47500 lbf
Manufacturer Catalog Number070305
Manufacturer Upc Number782475306121
UPC_NO782475306121
Sealing TypeTriple-Lip Contact
Sensor ReadyYes
Shaft AttachmentSetscrew
Take Up Frame SizeHD-200, LD-40
Housing DimensionsS-2000
Locking TypeSet Screw
Number Of Mounting Holes2
Mounting Type2-Bolt Base
Product TypePillow Block Roller Bearing Units
