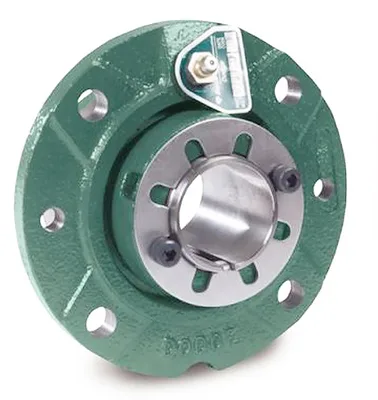

Dodge FC-IP-415LE
Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4-15/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing
Bore Diameter4-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter12.7500 in
Locking DeviceAdapter Mounted
Ürün Hakkında
Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 4-15/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing
Dodge FC-IP-415LE
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter4-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter12.7500 in
Locking DeviceAdapter Mounted
Expansion TypeExpansion Bearing (Floating)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeLabyrinth
Pilot Diameter11.0000 in
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length5.98 in
SeriesFC-IP
Manufacturer Catalog Number069931
Manufacturer Upc Number782475314690
UPC_NO782475314690
Weight55.200 lbs
Dynamic Load Capacity146000 lbf
Housing Type4-Bolt Piloted Flange
Max Rpm1800 rpm
Static Load Capacity196000 lbf
Description069931 FC-IP-415LE
Shaft AttachmentPush-Pull Adapter
Housing DimensionsS-2000
Material069931
Sensor ReadyYes
Long DescriptionThe FC-IP-415LE is a spherical roller expansion bearing unit, 4-bolt piloted flange type with a 4-15/16 in bore diameter, floating bearing and 12.7500 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and labyrinth seal in the FC-IP series. The unit weighs 55.200 lbs.
