Dodge FC-IP-211L

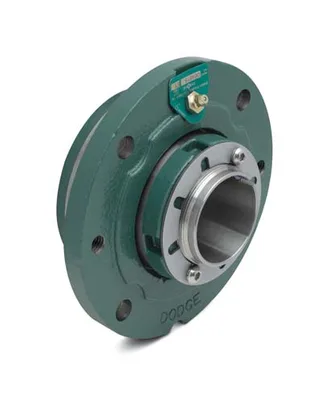

Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 2-11/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Product TypeFlange-Mount Roller Bearing Units
Bolt Circle Diameter7.5000 in
Bore Diameter2-11/16 in
Bore Length3.5 in
Country of OriginUS
Description069886 FC-IP-211L
Ürün Hakkında
Four-Bolt Piloted Roller Bearing Unit - Spherical Roller Brg., 2-11/16 in Bore , 4-Bolt Piloted Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge FC-IP-211L
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Product TypeFlange-Mount Roller Bearing Units
Bolt Circle Diameter7.5000 in
Bore Diameter2-11/16 in
Bore Length3.5 in
Country of OriginUS
Description069886 FC-IP-211L
Dynamic Load Capacity41500 lbf
Expansion TypeNon-Expansion Bearing (Fixed)
UPC_NO782475314393
Grease TypeMobilGrease XHP222
Housing ConstructionSolid
Housing DimensionsS-2000
Housing MaterialCast Iron
Housing Type4-Bolt Piloted Flange
Insert MaterialSteel
Locking DeviceAdapter Mounted
LubricationGrease
Manufacturer Catalog Number069886
Material069886
Max Rpm3400 rpm
Mounting Type4-Bolt Piloted Flange
Pilot Diameter6.3750 in
Seal TypeLabyrinth
Sensor ReadyYes
SeriesFC-IP
Shaft AttachmentPush-Pull Adapter
Static Load Capacity53000 lbf
Type Of BearingSpherical Roller
Weight20.250 lbs
Long DescriptionThe FC-IP-211L is a spherical roller bearing unit, 4-bolt piloted flange type with a 2-11/16 in bore diameter, non-expansion (fixed) bearing and 7.5000 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, adapter mounted locking device, and labyrinth seal in the FC-IP series. The unit weighs 20.250 lbs.
