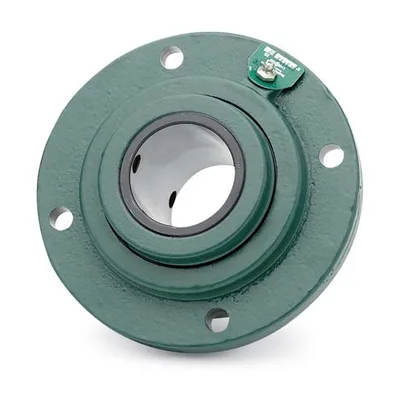

Dodge FC-E-500R
Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 5 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter5 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter12.7500 in
Locking DeviceSet Screw
Ürün Hakkında
Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 5 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge FC-E-500R
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter5 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter12.7500 in
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingTapered Roller
Seal TypeTriple-Lip Contact Seal
Pilot Diameter11.0000 in
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Radial Dynamic Load Capacity41310 lbf
Radial Static Load Capacity266000 lbf
Bore Length7.25 in
SeriesFC-E
Manufacturer Catalog Number023148
UPC_NO782475697731
Weight128.000 lbs
Dynamic Load Capacity41310 lbf
Housing TypePiloted Flange
Max Rpm1200 rpm
Static Load Capacity266000 lbf
Description023148 FCE500R PILOTED FLG BRG
Maximum Speed1200 rpm
Shaft AttachmentSetscrew
Housing IDType E
Material023148
Long DescriptionThe FC-E-500R is a tapered roller bearing unit, 4-bolt piloted flange type with a 5 in bore diameter, non-expansion (fixed) bearing, and 12.7500 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, and XTS triple-lip contact seal in the FC-E series. The unit weighs 128.000 lbs.
