Detayları Gör
Dodge
LFT-SXV-012-NL
MFR #LFT-SXV-012-NL
SKU #YLSKU43Z0BTGDGA
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

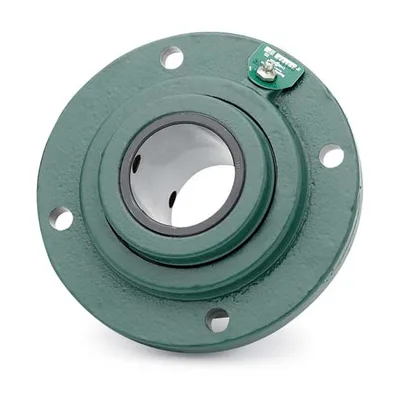

Dodge FC-E-304R MOD
Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 3-1/4 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter3-1/4 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter8.6250 in
Locking DeviceSet Screw
Ürün Hakkında
Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 3-1/4 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge FC-E-304R MOD
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter3-1/4 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter8.6250 in
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingTapered Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Radial Dynamic Load Capacity17750 lbf
Radial Static Load Capacity108600 lbf
Bore Length5 in
SeriesFC-E
Manufacturer Catalog Number079753
UPC_NO782476915315
Dynamic Load Capacity17750 lbf
Housing TypePiloted Flange
Max Rpm1640 rpm
Static Load Capacity108600 lbf
Description079753 FC-E-304R MOD
Maximum Speed1640 rpm
Shaft AttachmentSetscrew
Housing IDType E
Material079753
Long DescriptionThe FC-E-304R MOD is a tapered roller bearing unit, 4-bolt piloted flange type with a 3-1/4 in bore diameter, non-expansion (fixed) bearing and 8.6250 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, and XTS triple-lip contact seal in the FC-E series. The unit weighs 29.670 lbs.
