Dodge
LFT-SXV-012-NL
MFR #LFT-SXV-012-NL
SKU #YLSKU43Z0BTGDGA
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

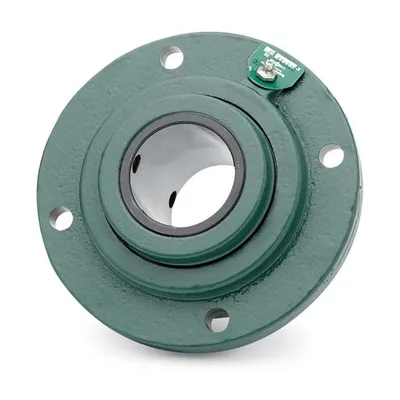

Dodge FC-E-208R-DRY
Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 2-1/2 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter2-1/2 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter6.5000 in
Locking DeviceSet Screw
Ürün Hakkında
Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 2-1/2 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge FC-E-208R-DRY
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter2-1/2 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter6.5000 in
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingTapered Roller
Seal TypeTriple-Lip Contact Seal
Pilot Diameter5.5000 in
Insert MaterialSteel
LubricationNone
Radial Dynamic Load Capacity10600 lbf
Radial Static Load Capacity54000 lbf
Bore Length4 in
SeriesFC-E
Manufacturer Catalog Number073251
UPC_NO782476327675
Dynamic Load Capacity10600 lbf
Housing TypePiloted Flange
Max Rpm2420 rpm
Static Load Capacity54000 lbf
Description073251 FC-E-208R-DRY FLG BRG
Maximum Speed2420 rpm
Shaft AttachmentSetscrew
Housing IDType E
Material073251
Long DescriptionThe FC-E-208R-DRY is a tapered roller bearing unit, 4-bolt piloted flange type with a 2-1/2 in bore diameter, non-expansion (fixed) bearing and 6.5000 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, and XTS triple-lip contact seal in the FC-E series. The unit weighs 17.000 lbs.
