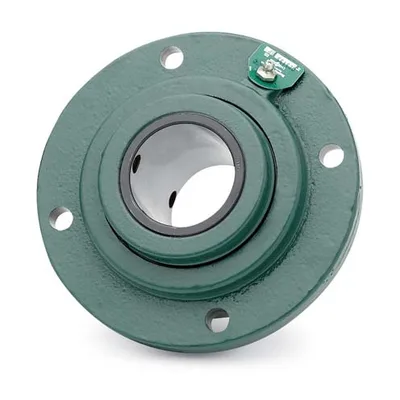

Dodge FC-E-207-HT
Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 2-7/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter2-7/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter6.5000 in
Locking DeviceSet Screw
Ürün Hakkında
Four-Bolt Piloted Roller Bearing Unit - Tapered Roller Brg., 2-7/16 in Bore , 4-Bolt Piloted Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge FC-E-207-HT
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter2-7/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Piloted Flange
Housing MaterialCast Iron
Bolt Circle Diameter6.5000 in
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingTapered Roller
Seal TypeLabyrinth
Pilot Diameter5.5000 in
Insert MaterialSteel
Grease TypeMobilGrease HTS #2
LubricationGrease
Radial Dynamic Load Capacity10600 lbf
Radial Static Load Capacity54000 lbf
Bore Length4 in
SeriesFC-E
Manufacturer Catalog Number080488
UPC_NO782477036620
Weight17.500 lbs
Dynamic Load Capacity10600 lbf
Housing TypePiloted Flange
Max Rpm2420 rpm
Static Load Capacity54000 lbf
DescriptionFC-E-207-HT BEARINGS
Maximum Speed2420 rpm
Shaft AttachmentSetscrew
Suitable For High Temp AppYes
Housing IDType E
Material080488
Long DescriptionThe FC-E-207-HT is a tapered roller bearing unit, 4-bolt piloted flange type with a 2-7/16 in bore diameter, non-expansion (fixed) bearing and 6.5000 in bolt circle. It features a cast iron housing with a 4-bolt piloted flange mounting, set screw locking device, labyrinth seal, and is suitable for high temperature applications in the FC-E series. The unit weighs 17.500 lbs.
