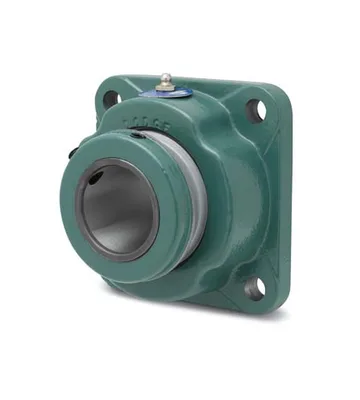

Dodge F4S-S2-307R
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-7/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter3-7/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 3-7/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge F4S-S2-307R
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter3-7/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length4.17 in
SeriesF4S-S2
Manufacturer Catalog Number070557
UPC_NO782475306695
Dynamic Load Capacity65500 lbf
Housing Type4-Bolt Flange
Max Rpm1280 rpm
Static Load Capacity81500 lbf
Description070557 F4S-S2-307R
Max Bolt Hole Spacing6.7200 in
Min Bolt Hole Spacing6.7200 in
Shaft AttachmentSetscrew
Insert Outer Diameter160 mm
Housing DimensionsS-2000
Material070557
Sensor ReadyYes
Long DescriptionThe F4S-S2-307R is a spherical roller bearing unit, 4-bolt flange type with a 3-7/16 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, set screw locking device, and Trident triple-lip contact seal in the F4S-S2 series. The unit weighs 29.540 lbs.
