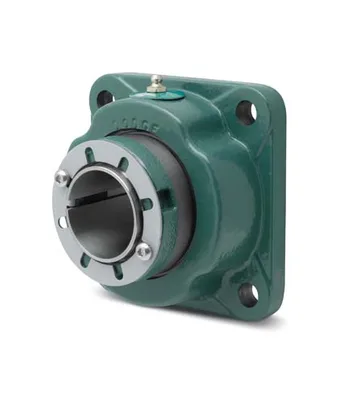

Dodge F4S-IP-215RE
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-15/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing
Bore Diameter2-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceAdapter Mounted
Expansion TypeExpansion Bearing (Floating)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-15/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing
Dodge F4S-IP-215RE
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter2-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceAdapter Mounted
Expansion TypeExpansion Bearing (Floating)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length3.5 in
SeriesF4S-IP
Manufacturer Catalog Number069740
UPC_NO782475309689
Weight16.350 lbs
Dynamic Load Capacity41500 lbf
Housing Type4-Bolt Flange
Max Rpm2250 rpm
Static Load Capacity53000 lbf
Description069740 F4S-IP-215RE
Max Bolt Hole Spacing5.5600 in
Min Bolt Hole Spacing5.5600 in
Shaft AttachmentPush-Pull Adapter
Insert Outer Diameter130 mm
Housing DimensionsS-2000
Material069740
Sensor ReadyYes
Long DescriptionThe F4S-IP-215RE is a spherical roller expansion bearing unit, 4-bolt flange type with a 2-15/16 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4S-IP series. The unit weighs 16.350 lbs.
