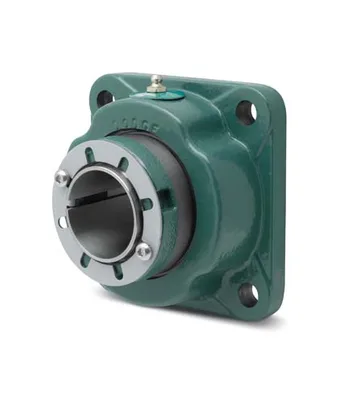

Dodge F4S-IP-100MR
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 100 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter100 mm
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceAdapter Mounted
Expansion TypeNon-Expansion Bearing (Fixed)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 100 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge F4S-IP-100MR
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter100 mm
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceAdapter Mounted
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length4.7 in
SeriesF4S-IP
Manufacturer Catalog Number079381
UPC_NO782476772765
Dynamic Load Capacity83000 lbf
Housing Type4-Bolt Flange
Max Rpm1530 rpm
Static Load Capacity104000 lbf
Description079381 F4S-IP-100MR
Max Bolt Hole Spacing7.6100 in
Min Bolt Hole Spacing7.6100 in
Shaft AttachmentPush-Pull Adapter
Insert Outer Diameter180 mm
Housing DimensionsS-2000
Material079381
Sensor ReadyYes
Long DescriptionThe F4S-IP-100MR is a spherical roller bearing unit, 4-bolt flange type with a 100 mm bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4S-IP series. The unit weighs 29.670 lbs.
