Dodge F4S-IP-035MR

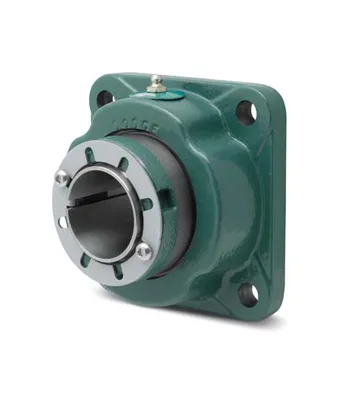

Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 35 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter35 mm
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceAdapter Mounted
Expansion TypeNon-Expansion Bearing (Fixed)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 35 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge F4S-IP-035MR
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter35 mm
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceAdapter Mounted
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length2.63 in
SeriesF4S-IP
Manufacturer Catalog Number075109
UPC_NO782476507701
Dynamic Load Capacity20800 lbf
Housing Type4-Bolt Flange
Max Rpm3975 rpm
Static Load Capacity21000 lbf
Description075109 F4S-IP-035MR FLG
Max Bolt Hole Spacing3.5300 in
Min Bolt Hole Spacing3.5300 in
Shaft AttachmentPush-Pull Adapter
Insert Outer Diameter80 mm
Housing DimensionsS-2000
Material075109
Sensor ReadyYes
Long DescriptionThe F4S-IP-035MR is a spherical roller bearing unit, 4-bolt flange type with a 35 mm bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4S-IP series. The unit weighs 5.460 lbs.
