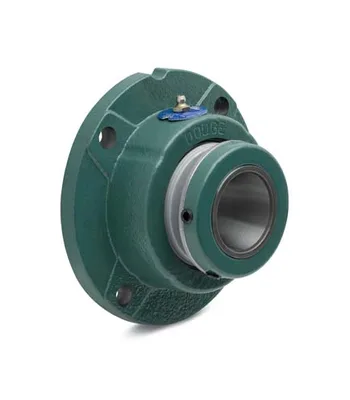

Dodge F4R-S2-215L
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 2-15/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter2-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter7.8750 in
Locking DeviceSet Screw
Ürün Hakkında
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 2-15/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge F4R-S2-215L
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter2-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter7.8750 in
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeLabyrinth
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length3.5 in
SeriesF4R-S2
Manufacturer Catalog Number070504
UPC_NO782475306893
Weight24.580 lbs
Dynamic Load Capacity41500 lbf
Housing Type4-Bolt Round
Max Rpm2040 rpm
Static Load Capacity53000 lbf
Description070504 F4R-S2-215L
Max Bolt Hole Spacing5.5600 in
Min Bolt Hole Spacing5.5600 in
Shaft AttachmentSetscrew
Insert Outer Diameter130 mm
Housing DimensionsS-2000
Material070504
Sensor ReadyYes
Long DescriptionThe F4R-S2-215L is a spherical roller bearing unit, 4-bolt round flange type with a 2-15/16 in bore diameter, non-expansion (fixed) bearing and 7.8750 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, set screw locking device, and labyrinth seal in the F4R-S2 series. The unit weighs 24.580 lbs.
