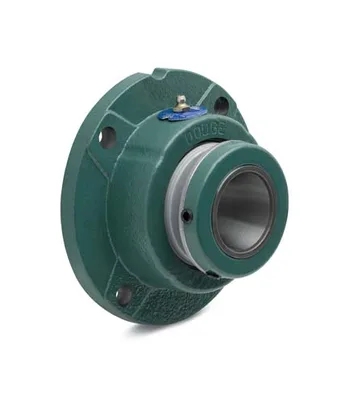

Dodge F4R-S2-111RE
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 1-11/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing
Bore Diameter1-11/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter5.5000 in
Locking DeviceSet Screw
Ürün Hakkında
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 1-11/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing
Dodge F4R-S2-111RE
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter1-11/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter5.5000 in
Locking DeviceSet Screw
Expansion TypeExpansion Bearing (Floating)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length2.81 in
SeriesF4R-S2
Manufacturer Catalog Number070474
UPC_NO782475306732
Weight9.000 lbs
Dynamic Load Capacity20800 lbf
Housing Type4-Bolt Round
Max Rpm2460 rpm
Static Load Capacity22000 lbf
Description070474 F4R-S2-111RE
Max Bolt Hole Spacing3.8900 in
Min Bolt Hole Spacing3.8900 in
Shaft AttachmentSetscrew
Insert Outer Diameter85 mm
Housing DimensionsS-2000
Material070474
Sensor ReadyYes
Long DescriptionThe F4R-S2-111RE is a spherical roller expansion bearing unit, 4-bolt round flange type with a 1-11/16 in bore diameter, floating bearing and 5.5000 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, set screw locking device, and Trident triple-lip contact seal in the F4R-S2 series. The unit weighs 9.000 lbs.
