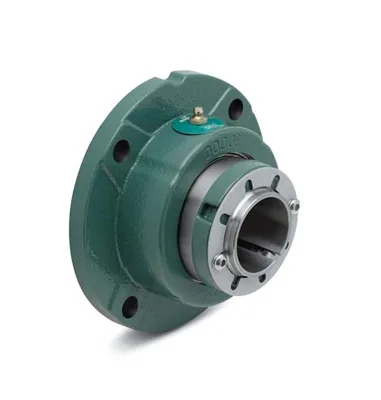

Dodge F4R-IP-215LE
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 2-15/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing
Bore Diameter2-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter7.8750 in
Locking DeviceAdapter Mounted
Ürün Hakkında
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 2-15/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing
Dodge F4R-IP-215LE
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter2-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter7.8750 in
Locking DeviceAdapter Mounted
Expansion TypeExpansion Bearing (Floating)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeLabyrinth
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length3.5 in
SeriesF4R-IP
Manufacturer Catalog Number069691
UPC_NO782475313761
Weight16.350 lbs
Dynamic Load Capacity41500 lbf
Housing Type4-Bolt Round
Max Rpm3400 rpm
Static Load Capacity53000 lbf
Description069691 F4R-IP-215LE
Max Bolt Hole Spacing5.5600 in
Min Bolt Hole Spacing5.5600 in
Shaft AttachmentPush-Pull Adapter
Insert Outer Diameter130 mm
Housing DimensionsS-2000
Material069691
Sensor ReadyYes
Long DescriptionThe F4R-IP-215LE is a spherical roller expansion bearing unit, 4-bolt round flange type with a 2-15/16 in bore diameter, floating bearing and 7.8750 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, adapter mounted locking device, and labyrinth seal in the F4R-IP series. The unit weighs 16.350 lbs.
