Detayları Gör
Dodge
LFT-SXV-012-NL
MFR #LFT-SXV-012-NL
SKU #YLSKU43Z0BTGDGA
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

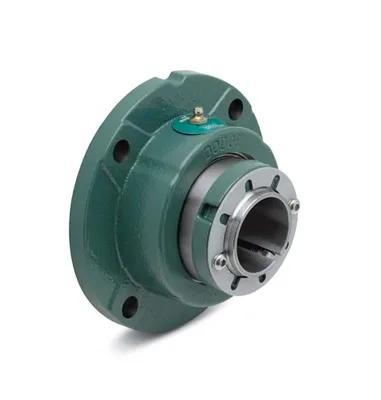

Dodge F4R-IP-115R
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 1-15/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter1-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter5.7500 in
Locking DeviceAdapter Mounted
Ürün Hakkında
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 1-15/16 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge F4R-IP-115R
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter1-15/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter5.7500 in
Locking DeviceAdapter Mounted
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length2.86 in
SeriesF4R-IP
Manufacturer Catalog Number069602
UPC_NO782475309009
Dynamic Load Capacity22000 lbf
Housing Type4-Bolt Round
Max Rpm3520 rpm
Static Load Capacity24000 lbf
Description069602 F4R-IP-115R
Max Bolt Hole Spacing4.0600 in
Min Bolt Hole Spacing4.0600 in
Shaft AttachmentPush-Pull Adapter
Insert Outer Diameter90 mm
Housing DimensionsS-2000
Material069602
Sensor ReadyYes
Long DescriptionThe F4R-IP-115R is a spherical roller bearing unit, 4-bolt round flange type with a 1-15/16 in bore diameter, non-expansion (fixed) bearing and 5.7500 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4R-IP series. It weighs 10.470 lbs.
