Detayları Gör
Dodge
LFT-SXV-012-NL
MFR #LFT-SXV-012-NL
SKU #YLSKU43Z0BTGDGA
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

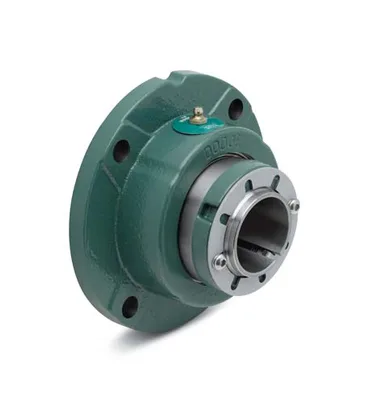

Dodge F4R-IP-114LE
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 1-7/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing
Bore Diameter1-7/8 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter5.7500 in
Locking DeviceAdapter Mounted
Ürün Hakkında
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 1-7/8 in Bore , 4-Bolt Flange Mount, Adapter Mounted, Expansion Bearing (Floating), Cast Iron Housing
Dodge F4R-IP-114LE
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter1-7/8 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter5.7500 in
Locking DeviceAdapter Mounted
Expansion TypeExpansion Bearing (Floating)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeLabyrinth
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length2.86 in
SeriesF4R-IP
Manufacturer Catalog Number069681
Manufacturer Upc Number782475313679
UPC_NO782475313679
Weight10.470 lbs
Dynamic Load Capacity22000 lbf
Housing Type4-Bolt Round
Max Rpm5300 rpm
Static Load Capacity24000 lbf
Description069681 F4R-IP-114LE
Max Bolt Hole Spacing4.0600 in
Min Bolt Hole Spacing4.0600 in
Shaft AttachmentPush-Pull Adapter
Insert Outer Diameter90 mm
Housing DimensionsS-2000
Material069681
Sensor ReadyYes
Long DescriptionThe F4R-IP-114LE is a spherical roller expansion bearing unit, 4-bolt round flange type with a 1-7/8 in bore diameter, floating bearing and 5.7500 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, adapter mounted locking device, and labyrinth seal in the F4R-IP series. The unit weighs 10.470 lbs.
