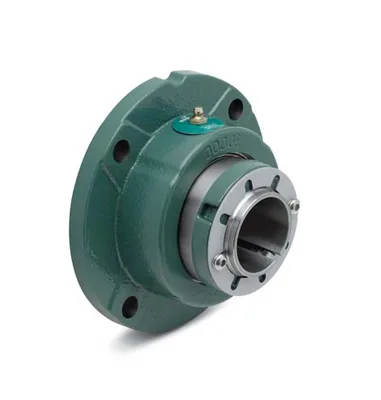

Dodge F4R-IP-070MR
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 70 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter70 mm
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter7.8750 in
Locking DeviceAdapter Mounted
Ürün Hakkında
Four-Bolt Round Roller Bearing Unit - Spherical Roller Brg., 70 mm Bore , 4-Bolt Flange Mount, Adapter Mounted, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge F4R-IP-070MR
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter70 mm
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Bolt Circle Diameter7.8750 in
Locking DeviceAdapter Mounted
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Type Of BearingSpherical Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length3.5 in
SeriesF4R-IP
Manufacturer Catalog Number139670
UPC_NO782477333514
Weight17.000 lbs
Dynamic Load Capacity41500 lbf
Housing Type4-Bolt Round
Max Rpm2250 rpm
Static Load Capacity53000 lbf
DescriptionF4R-IP-070MR BEARINGS
Max Bolt Hole Spacing5.5600 in
Min Bolt Hole Spacing5.5600 in
Shaft AttachmentPush-Pull Adapter
Insert Outer Diameter130 mm
Housing DimensionsS-2000
Material139670
Sensor ReadyYes
Long DescriptionThe F4R-IP-070MR is a spherical roller bearing unit, 4-bolt round flange type with a 70 mm bore diameter, non-expansion (fixed) bearing and 7.8750 in bolt circle. It features a cast iron housing with a 4-bolt round flange mounting, adapter mounted locking device, and Trident triple-lip contact seal in the F4R-IP series. The unit weighs 17.000 lbs.
