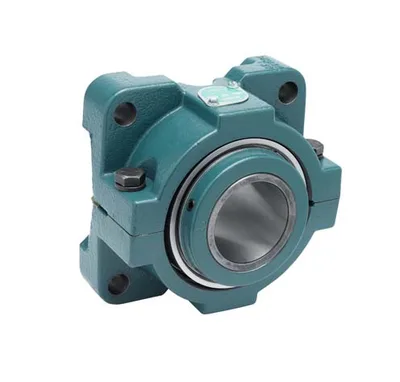

Dodge F4B-EXL-211R
Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 2-11/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing
Bore Diameter2-11/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialDuctile Iron
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 2-11/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Ductile Iron Housing
Dodge F4B-EXL-211R
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter2-11/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialDuctile Iron
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSplit
Country of OriginUS
Type Of BearingTapered Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Radial Dynamic Load Capacity11120 lbf
Radial Static Load Capacity61200 lbf
Bore Length4.5 in
SeriesF4B-EXL
Manufacturer Catalog Number077316
UPC_NO782477136375
Dynamic Load Capacity11120 lbf
Housing TypeFour-Bolt Flange
Max Rpm2060 rpm
Static Load Capacity61200 lbf
Description077316 F4B-EXL-211R FLANGE BRG
Maximum Speed2060 rpm
Shaft AttachmentSetscrew
Housing IDType E
Material077316
Long DescriptionThe F4B-EXL-208R is a tapered roller bearing unit, 4-bolt flange type with a 2-1/2 in bore diameter, non-expansion (fixed) bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and XTS triple-lip contact seal in the F4B-EXL series. The unit weighs 24.000 lbs.
