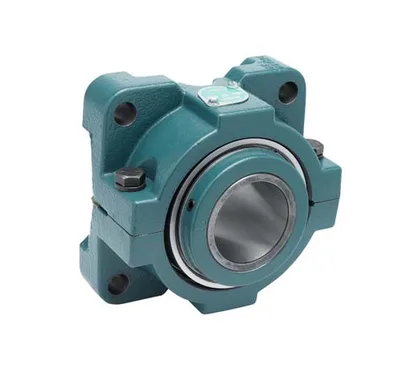

Dodge F4B-EXL-203RE
Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 2-3/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing
Bore Diameter2-3/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialDuctile Iron
Locking DeviceSet Screw
Expansion TypeExpansion Bearing (Floating)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 2-3/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Ductile Iron Housing
Dodge F4B-EXL-203RE
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter2-3/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialDuctile Iron
Locking DeviceSet Screw
Expansion TypeExpansion Bearing (Floating)
Housing ConstructionSplit
Country of OriginUS
Type Of BearingTapered Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeNone
LubricationGrease
Radial Dynamic Load Capacity9850 lbf
Radial Static Load Capacity48200 lbf
Bore Length3.75 in
SeriesF4B-EXL
Manufacturer Catalog Number077337
UPC_NO782477135989
Dynamic Load Capacity9850 lbf
Housing TypeFour-Bolt Flange
Max Rpm2730 rpm
Static Load Capacity48200 lbf
Description077337 F4B-EXL-203RE FLANGE BRG
Maximum Speed2730 rpm
Shaft AttachmentSetscrew
Housing IDType E
Material077337
Long DescriptionThe F4B-EXL-203RE is a tapered roller expansion bearing unit, 4-bolt flange type with a 2-3/16 in bore diameter, floating bearing. It features a ductile iron housing with a 4-bolt flange mounting, set screw locking device, and XTS triple-lip contact seal in the F4B-EXL series. The unit weighs 19.000 lbs.
