Dodge
LFT-SXV-012-NL
MFR #LFT-SXV-012-NL
SKU #YLSKU43Z0BTGDGA
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

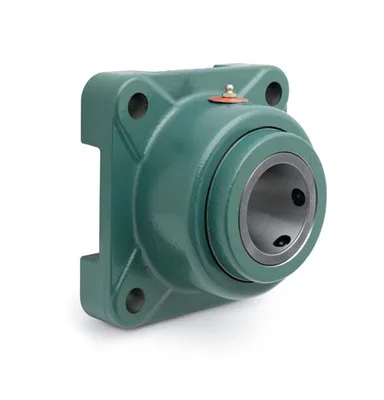

Dodge F4B-E-203L HT
Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 2-3/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter2-3/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 2-3/16 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge F4B-E-203L HT
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter2-3/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingTapered Roller
Seal TypeLabyrinth
Insert MaterialSteel
Grease TypeMobilGrease HTS #2
LubricationGrease
Radial Dynamic Load Capacity9850 lbf
Radial Static Load Capacity48200 lbf
Bore Length3.75 in
SeriesF4B-E
Manufacturer Catalog Number139216
UPC_NO782477163821
Weight15.680 lbs
Dynamic Load Capacity9850 lbf
Housing TypeFour-Bolt Flange
Max Rpm2730 rpm
Static Load Capacity48200 lbf
Description139216 F4B-E-203L HT FLG BRG
Maximum Speed2730 rpm
Shaft AttachmentSetscrew
Suitable For High Temp AppYes
Housing IDType E
Material139216
Long DescriptionThe F4B-E-203L HT is a tapered roller bearing unit, 4-bolt flange type with a 2-3/16 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, set screw locking device, labyrinth seal in the F4B-E series, and is suitable for high temperature applications. The unit weighs 15.680 lbs.
