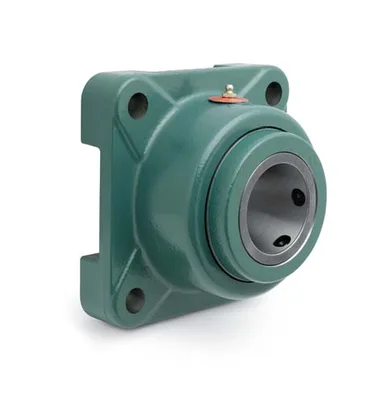

Dodge F4B-E-108-HT
Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 1-1/2 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Bore Diameter1-1/2 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Tapered Roller Brg., 1-1/2 in Bore , 4-Bolt Flange Mount, Set Screw, Non-Expansion Bearing (Fixed), Cast Iron Housing
Dodge F4B-E-108-HT
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter1-1/2 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeNon-Expansion Bearing (Fixed)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingTapered Roller
Seal TypeLabyrinth
Insert MaterialSteel
Grease TypeMobilGrease HTS #2
LubricationGrease
Radial Dynamic Load Capacity7070 lbf
Radial Static Load Capacity33000 lbf
Bore Length3.3800 in
SeriesF4B-E
Manufacturer Catalog Number075985
UPC_NO782475284757
Dynamic Load Capacity7070 lbf
Housing TypeFour-Bolt Flange
Max Rpm3320 rpm
Static Load Capacity33000 lbf
Description075985 F4B-E-108-HT FLG BRG
Maximum Speed3320 rpm
Shaft AttachmentSetscrew
Suitable For High Temp AppYes
Housing IDType E
Material075985
Long DescriptionThe F4B-E-108-HT is a tapered roller bearing unit, 4-bolt flange type with a 1-1/2 in bore diameter, non-expansion (fixed) bearing. It features a cast iron housing with a 4-bolt flange mounting, set screw locking device, and XTS triple-lip contact seal in the F4B-E series. It is suitable for high temperature applications. The unit weighs 10.840 lbs.
