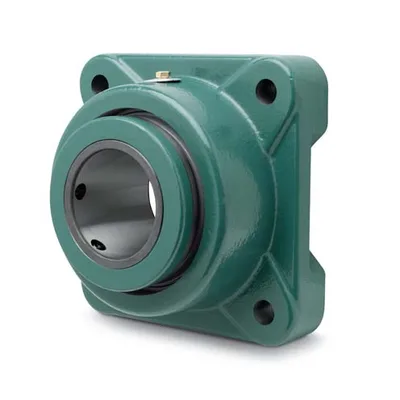

Dodge EF4B-S2-407RE
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 4-7/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing
Bore Diameter4-7/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeExpansion Bearing (Floating)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 4-7/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing
Dodge EF4B-S2-407RE
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter4-7/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeExpansion Bearing (Floating)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeTriple-Lip Contact Seal
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length5.23 in
SeriesEF4B-S2
Manufacturer Catalog Number071494
UPC_NO782476187194
Weight86.420 lbs
Dynamic Load Capacity104000 lbf
Housing Type4-Bolt Flange
Max Rpm990 rpm
Static Load Capacity132000 lbf
Description071494 EF4B-S2-407RE BRG
Max Bolt Hole Spacing8.7500 in
Min Bolt Hole Spacing8.7500 in
Shaft AttachmentSetscrew
Insert Outer Diameter200 mm
Housing DimensionsType E
Material071494
Sensor ReadyYes
Long DescriptionThe EF4B-S2-407RE is a spherical roller expansion bearing unit, 4-bolt flange type with a 4-7/16 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, set screw locking device, and Trident triple-lip contact seal in the EF4B-S2 series. The unit weighs 86.420 lbs.
