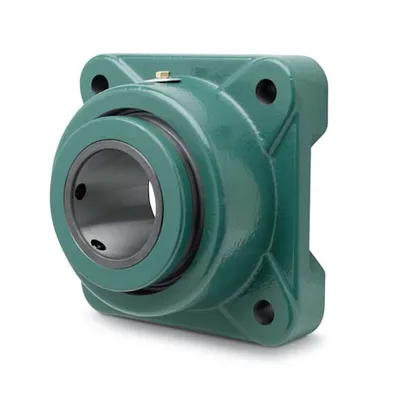

Dodge EF4B-S2-211LE
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-11/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing
Bore Diameter2-11/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeExpansion Bearing (Floating)
Ürün Hakkında
Four-Bolt Square Roller Bearing Unit - Spherical Roller Brg., 2-11/16 in Bore , 4-Bolt Flange Mount, Set Screw, Expansion Bearing (Floating), Cast Iron Housing
Dodge EF4B-S2-211LE
- Orijinal ve sertifikalı Dodge ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Bore Diameter2-11/16 in
Product TypeFlange-Mount Roller Bearing Units
Mounting Type4-Bolt Flange
Housing MaterialCast Iron
Locking DeviceSet Screw
Expansion TypeExpansion Bearing (Floating)
Housing ConstructionSolid
Country of OriginUS
Type Of BearingSpherical Roller
Seal TypeLabyrinth
Insert MaterialSteel
Grease TypeMobilGrease XHP222
LubricationGrease
Bore Length3.5 in
SeriesEF4B-S2
Manufacturer Catalog Number071515
UPC_NO782476187408
Weight28.590 lbs
Dynamic Load Capacity41500 lbf
Housing Type4-Bolt Flange
Max Rpm2040 rpm
Static Load Capacity53000 lbf
Description071515 EF4B-S2-211LE BRG
Max Bolt Hole Spacing6.0000 in
Min Bolt Hole Spacing6.0000 in
Shaft AttachmentSetscrew
Insert Outer Diameter130 mm
Housing DimensionsType E
Material071515
Sensor ReadyYes
Long DescriptionThe EF4B-S2-211LE is a spherical roller expansion bearing unit, 4-bolt flange type with a 2-11/16 in bore diameter, floating bearing. It features a cast iron housing with a 4-bolt flange mounting, set screw locking device, and labyrinth seal in the EF4B-S2 series. The unit weighs 28.590 lbs.
