Bosch Rexroth 3842572124

Ürün Hakkında

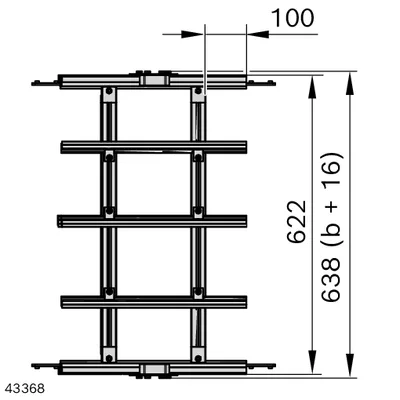

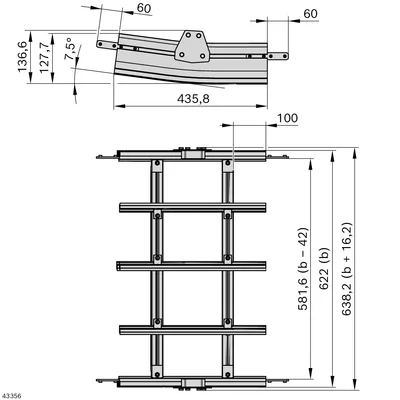

Before and after a vertical curve, a straight section with belt width (additional section profile with a minimum length of 458 mm) must be provided. Two additional support struts are required for the assembly of the attached support profile.<br>The usable track width is reduced by the use of lateral holding-down clamps for guiding the modular belt close to the profile in the vertical curve. Despite the use of the holding-down clamps, the modular belt may bulge in the vertical curves. The maximum bulging can be up to 35 mm in the center of the belt, depending on curve angle, chain tensile force and speed.

Bosch Rexroth 3842572124

• Orijinal ve sertifikalı Bosch Rexroth ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Dokümanlar ve CAD

Bu ürüne ait 1
