Bosch Rexroth 3842572118

Ürün Hakkında

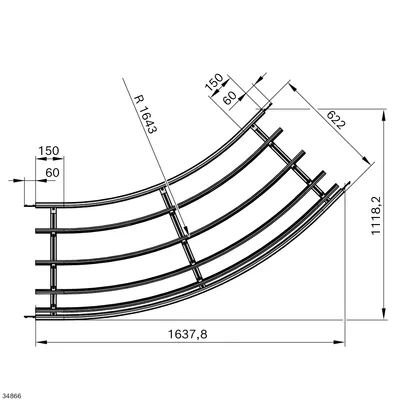

The use of the complete modular belt surface is possible, since on the underside, the belt is equipped with integrated holding-down clamps. As a result, even overwide products can be transported on a horizontal section path.<br>In front of and/or behind a horizontal curve, a straight section in belt width (additional section profile with a minimum length of 458 mm) must be provided. Between two horizontal curves in opposite direction (S curve), a straight section with twice the belt width (additional section profile with a minimum length of 916 mm) must be provided.

Bosch Rexroth 3842572118

• Orijinal ve sertifikalı Bosch Rexroth ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Dokümanlar ve CAD

Bu ürüne ait 1
