Bosch Rexroth 3842572102

Ürün Hakkında

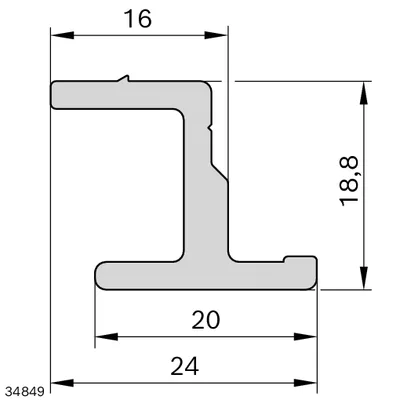

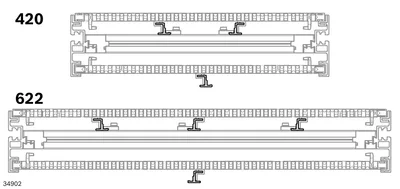

The main task of the support profile onto which the L-shaped sliding rail is clipped is to provide a running surface with the lowest possible friction and to reduce the wear of the modular belt. The system width determines the necessary number of support profiles. <br>The support profile must be longer in the upper run and shorter in the lower run.<br>Length of the support profile depending on the length L of the section profile:<br>Basic unit nose bar top: Drive: L+491; return unit L+197<br>Basic unit nose bar bottom: Return unit: L-15<br>Basic unit compact top: Drive & Return unit L+163<br>Basic unit compact bottom: Drive & Return unit L-15

Bosch Rexroth 3842572102

• Orijinal ve sertifikalı Bosch Rexroth ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Dokümanlar ve CAD

Bu ürüne ait 1
