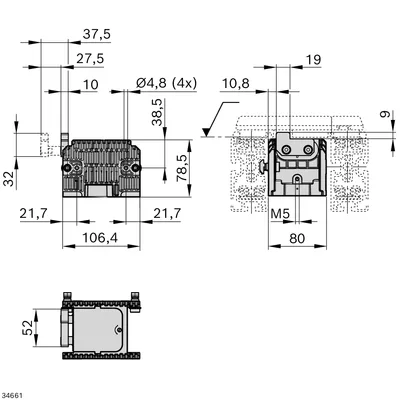

Bosch Rexroth 3842567562
The stop gate stops one or more accumulating workpiece pallets at the defined workpiece pallet stop surface. When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped. Mounted inside the tracks, directly on the conveyor section.
Teslim durumuAssembled
Operating temperature [T] max+5 … +60 °C
Workpiece pallet total weight [mG] [kg]220
Pneumatic straight connection [Ø] [mm]6
Workpiece pallet total weight [mG] [kg]220
Teslimat kapsamıPneumatic elements
Ürün Hakkında
The stop gate stops one or more accumulating workpiece pallets at the defined workpiece pallet stop surface. When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped. Mounted inside the tracks, directly on the conveyor section.
Bosch Rexroth 3842567562
- Orijinal ve sertifikalı Bosch Rexroth ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Teslim durumuAssembled
required compressed air connection [pmax] [bar]6
required compressed air connection [pmin] [bar]4
Operating temperature [T] max+5 … +60 °C
Workpiece pallet total weight [mG] [kg]220
Pneumatic straight connection [Ø] [mm]6
Workpiece pallet total weight [mG] [kg]220
Teslimat kapsamıIncl. fastening material for assembly on the conveyor section ST 2/...
Teslimat kapsamıPneumatic elements
Malzeme bilgisiHousing: Plastic
Malzeme bilgisiStop cam: Çelik, hardened
Pneumatic circuit diagram1 Not Dahil in the scope of delivery
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min28 ... 220 (accumulation roller chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min8,5 ... 110 (belt/toothed belt)
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min8,5 ... 138 (flat top chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min28 ... 180 (accumulation roller chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min8,5 ... 110 (belt/toothed belt)
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min8,5 ... 138 (flat top chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min28 ... 165 (accumulation roller chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min8,5 ... 110 (belt/toothed belt)
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min8,5 ... 138 (flat top chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min28 ... 135 (accumulation roller chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min8,5 ... 108 (flat top chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min8,5 ... 98 (belt/toothed belt)
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min28 ... 115 (accumulation roller chain)
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min8,5 ... 75 (belt/toothed belt)
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min8,5 ... 85 (flat top chain)
Önerilen aksesuarlarReturn stop VE 2/RS
Ağırlık [kg]0,7
Dokümanlar ve CAD
