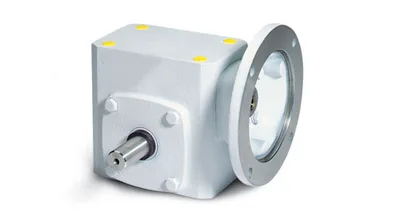

Baldor WDGF1018AG Right Angle Worm Gear
Right Angle Worm Gear Speed Reducer - Single Reduction, 10:1 Ratio, 1.75 in Center Distance, C-Face Quill, 0.6300 in Input Size, Left Hand Output, 56C Frame
ITEM #690744a8c29ded7b22b7b265 MFR #WDGF1018AG SKU #YLSK9IUBEQVTBNP
Hızlı Özellikler
Center Distance: 1.7500 in
Reduction: Single
Ratio: 10:1
Max Input Horsepower: 1.500 hp @ 1750 rpm
Input Type: C-Face Quill
Input Size: 0.6250 in
Genel Bakış
Right Angle Worm Gear Speed Reducer - Single Reduction, 10:1 Ratio, 1.75 in Center Distance, C-Face Quill, 0.6300 in Input Size, Left Hand Output, 56C Frame
Teknik Özellikler
Center Distance 1.7500 in
Reduction Single
Ratio 10:1
Max Input Horsepower 1.500 hp @ 1750 rpm
Input Type C-Face Quill
Input Size 0.6250 in
Output Type Solid
Output Size 0.8750 in
Output Direction Left Hand
NEMA / IEC Frame Size 56C
Maximum Output RPM 175.000 @ 1750 rpm input
Maximum Output Torque 428 in-lbs
Housing Material Cast Iron
Overhung Load Capacity 600 lb
Housing Dimensions 5.56 x 4.72 x 5-3/4 in
Housing Height 5.75 in
Housing Length 5.75 in
Housing Width 4.72 in
Includes Klubersynth UHI-6-460 Synthetic Oil
Manufacturer Reducer Size 918
Mounting Type Basic Gear Reducer Drive
UPC_NO 781568195925
Weight 30.00 lbs
