Baldor VP3575-14 DC Motors
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), D90C Frame
ITEM #6907af6bad9cc32ae1311a69 MFR #VP3575-14 SKU #YLS45LH5JYVBPOP
Hızlı Özellikler
Motor Family: Permanent Magnet
Motor Type: Brushed
Motor Horsepower: 1-1/2 hp
DC Armature Voltage: 180 V
Base RPM: 1750 rpm
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), D90C Frame
Teknik Özellikler
Motor Family Permanent Magnet
Motor Type Brushed
Motor Horsepower 1-1/2 hp
DC Armature Voltage 180 V
Base RPM 1750 rpm
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
NEMA / IEC Frame Size D90C
Armature Full Load Current 7.7 A

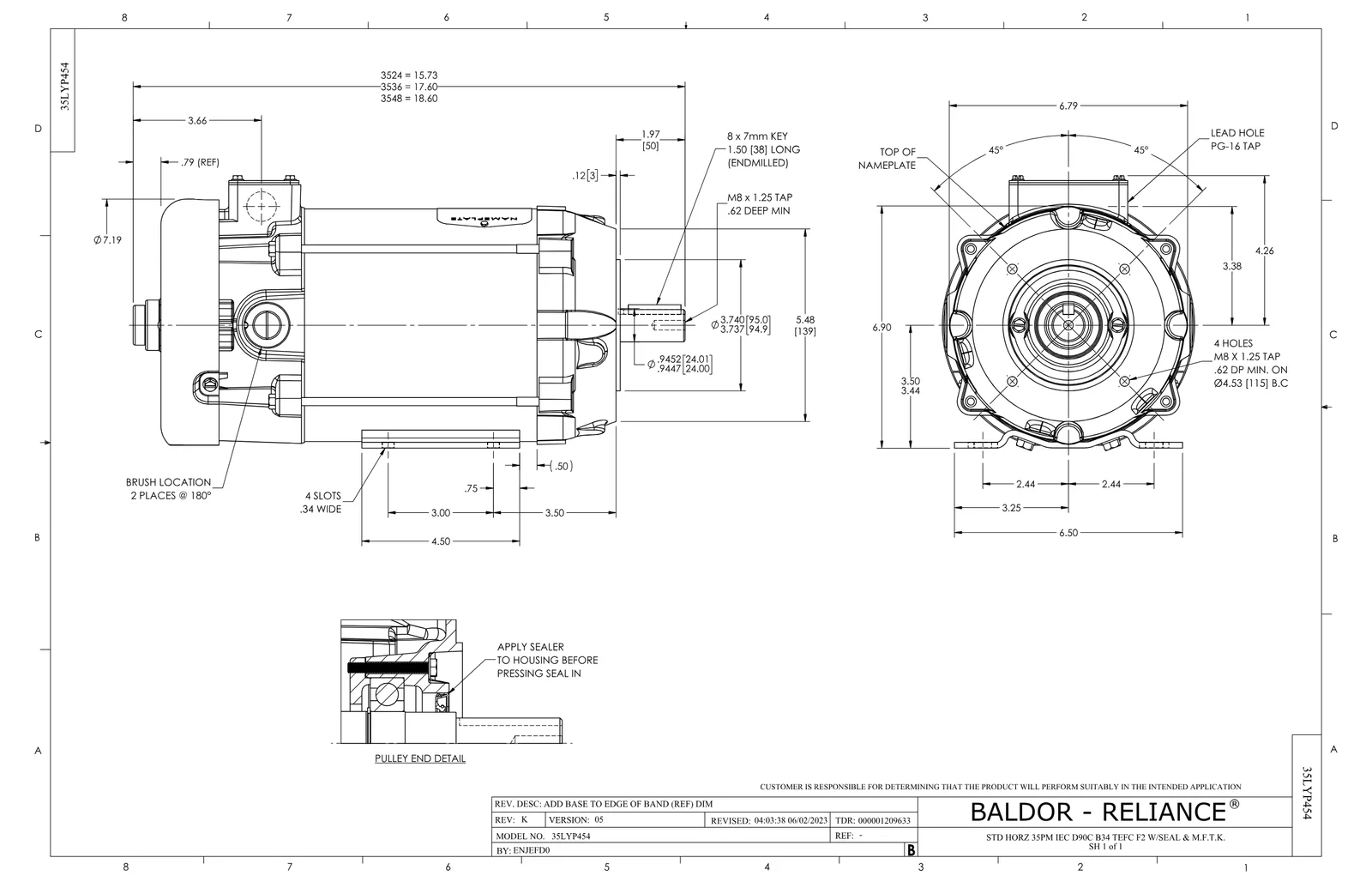

Overall Length C Dimension 17.63 in
Insulation Class F
Standards Met IEC 60034-1, IEC 60072-1, NEMA
Drive End Bearing 6203
Weight 73.00 lbs
Opposite Drive End Bearing 6203
Recommended Control Bc140
Typical Application Scar Drive Motors for Replacement on Machinery Requiring Metric Mounting Dimensions, C-Face Mount
Wattage 1119.1 W
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&page=2&catalogonly=1&catalog=VP3575-14&product=DC+Motors&family=Metric+Frames%7Cvw%5FDCMotors%5FMetricFrames
UPC_NO 781568154878
