Baldor VP3436D DC Motors
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), D80D Frame
ITEM #6907b020ad9cc32ae13121b4 MFR #VP3436D SKU #YLSUGCWWU85F885
Hızlı Özellikler
Motor Family: Permanent Magnet
Motor Type: Brushed
Motor Horsepower: 3/4 hp
DC Armature Voltage: 180 V
Base RPM: 1750 rpm
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), D80D Frame
Teknik Özellikler
Motor Family Permanent Magnet
Motor Type Brushed
Motor Horsepower 3/4 hp
DC Armature Voltage 180 V
Base RPM 1750 rpm
Enclosure Type TEFC (Totally Enclosed Fan Cooled)

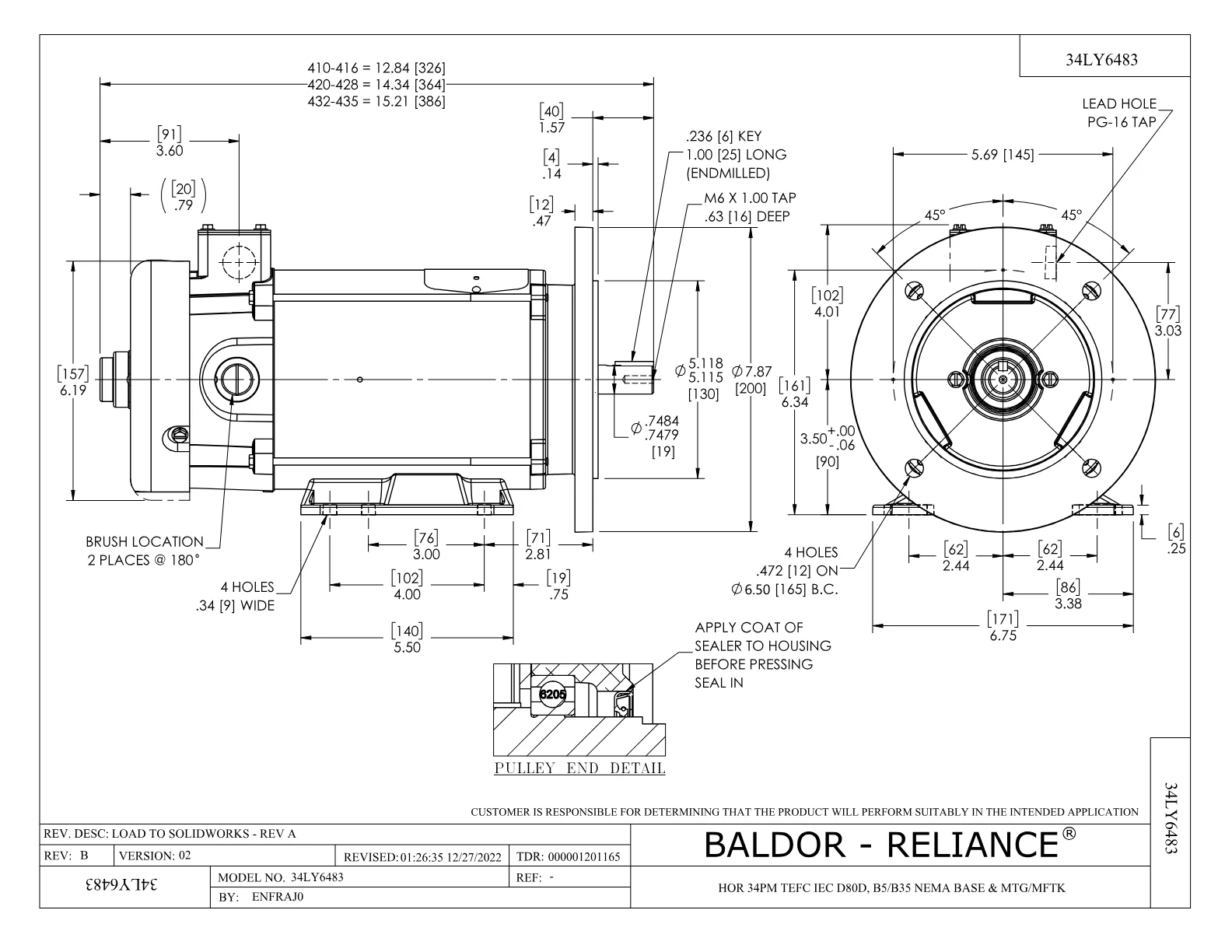

NEMA / IEC Frame Size D80D
Armature Full Load Current 3.7 A
Overall Length C Dimension 14.55 in
Insulation Class F
Operating Temperature Range Maximum of +110 °C
Standards Met IEC 60034-1, IEC 60072-1, NEMA
Drive End Bearing 6203
Weight 42.00 lbs
Opposite Drive End Bearing 6203
Recommended Control Bc140
Typical Application Scar Drive Motors for Replacement on Machinery Requiring Metric Mounting Dimensions, Motor Has Metric B5-Flange
Wattage 559.6 W
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&page=1&catalogonly=1&catalog=VP3436D&product=DC+Motors&family=Metric+Frames%7Cvw%5FDCMotors%5FMetricFrames
UPC_NO 781568154816
Overall Height 190 in
Overall Width 171 in
