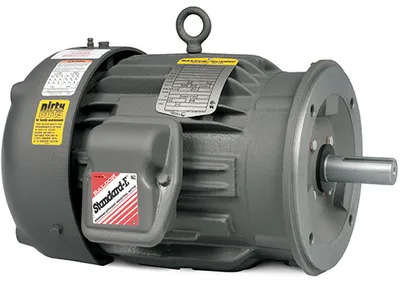

Baldor VM8016 AC Motors
Severe / Corrosive Duty Motor - 2 hp, 3600 rpm, 3 ph, 208-230/460 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty
ITEM #6907aabdad9cc32ae130d85b MFR #VM8016 SKU #YLSQGZN52JVDJ8R
Hızlı Özellikler
Motor Category: Corrosive Duty Motor
Motor Phase: 3 ph
Motor Horsepower: 2 hp
Description Keyword: 2 hp
Synchronous Rpm: 3600 rpm
Motor Supply Voltage: 208-230/460 V
Genel Bakış
Severe / Corrosive Duty Motor - 2 hp, 3600 rpm, 3 ph, 208-230/460 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty
Teknik Özellikler
Motor Category Corrosive Duty Motor
Motor Phase 3 ph
Motor Horsepower 2 hp
Description Keyword 2 hp
Synchronous Rpm 3600 rpm
Motor Supply Voltage 208-230/460 V
Frame Size 56C
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Duty Condition Type Continuous Duty
Full Load Efficiency 78.50 %
Amps @ Voltage 5.4 A @ 230 V; 5.7 A @ 208 V; 2.7 A @ 460 V
Volts @ Frequency 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
Shaft Diameter 0.6250 in
Overall Length C Dimension 12.69 in
Mounting Type C-Face / Footless
Service Factor 1.15
Frame Material Cast Iron
Insulation Class F
IP Rating 55
Standards Met CSA, UR
Harmonization Code 8501.52.4000
Weight 58 lbs
Applications Petro-chemical plants, mines, quarries, foundries, pulp and paper plants, waste management facilities, chemical plants and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.
Additional Details Totally enclosed fan cooled frame, Stainless steel shaft extensions, designed to meet the intent of IEEE-45 for weather protection, suitable for use in 50 Degree C ambient with a 1.0 service factor.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/VM8016
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=VM8016&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type Severe Duty Motors
