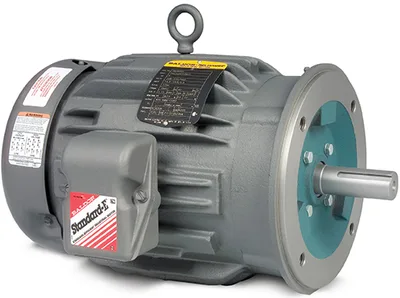

Baldor VM3770T AC Motors
General Purpose Motor - 7-1/2 hp, 1800 rpm, 3 ph, 208-230/460 V, 213TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty
ITEM #6907b00cad9cc32ae1311cee MFR #VM3770T SKU #YLSOLI4QY7M2EQ9
Hızlı Özellikler
Motor Phase: 3 ph
Motor Horsepower: 7-1/2 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 208-230/460 V
Frame Size: 213TC
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
General Purpose Motor - 7-1/2 hp, 1800 rpm, 3 ph, 208-230/460 V, 213TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty
Özellikler ve Avantajlar
- Ball bearings with a locked drive end bearing and heavy-gauge steel or cast iron frame
- Super-E® motors have NEMA Premium® efficiency and 3 year warranty
- Applications: Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor
Teknik Özellikler
Motor Phase 3 ph
Motor Horsepower 7-1/2 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 208-230/460 V
Frame Size 213TC
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Duty Condition Type Continuous Duty
Mounting Type C-Face / Footless
Full Load Current 10.30 A
Full Load Efficiency 89.50 %
Amps @ Voltage 22.3 A @ 208 V; 20.6 A @ 230 V; 10.3 A @ 460 V
Volts @ Frequency 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
Description Keyword 7-1/2 hp
Shaft Diameter 1.3750 in
Overall Length C Dimension 19.25 in
Service Factor 1.15
Frame Material Cast Iron
Insulation Class F
IP Rating 44
Standards Met CSA, UR
Weight 164 lbs
Applications Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor.
Additional Details Ball bearings with a locked drive end bearing and heavy-gauge steel or cast iron frame.
Harmonization Code 8501.52.4000
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/VM3770T
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=VM3770T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
