Baldor VHECP3769T AC Motors
Vertical P-Base Motor - 7-1/2 hp, 3600 rpm, 3 ph, 230/460 V, 213HP Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3510 rpm Base, Vertical Mount, Continuous Duty
ITEM #6907aa4aad9cc32ae130ca0c MFR #VHECP3769T SKU #YLS36460Z9W8MLY
Hızlı Özellikler
Motor Category: Vertical P-Base Motor
Motor Phase: 3 ph
Motor Horsepower: 7-1/2 hp
Synchronous Rpm: 3600 rpm
Motor Supply Voltage: 230/460 V
Frame Size: 213HP
Genel Bakış
Vertical P-Base Motor - 7-1/2 hp, 3600 rpm, 3 ph, 230/460 V, 213HP Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3510 rpm Base, Vertical Mount, Continuous Duty
Teknik Özellikler
Motor Category Vertical P-Base Motor
Motor Phase 3 ph
Motor Horsepower 7-1/2 hp
Synchronous Rpm 3600 rpm
Motor Supply Voltage 230/460 V
Frame Size 213HP
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Duty Condition Type Continuous Duty
Full Load Current 8.60 A
Full Load Efficiency 91.00 %
Amps @ Voltage 8.6 A @ 460 V; 18.6 A @ 208 V; 17.2 A @ 230 V
Base RPM 3510 rpm
Volts @ Frequency 230 V @ 60 Hz; 460 V @ 60 Hz
Standards Met CSA EEV, UR, CSA
Shaft Diameter 1.1250 in

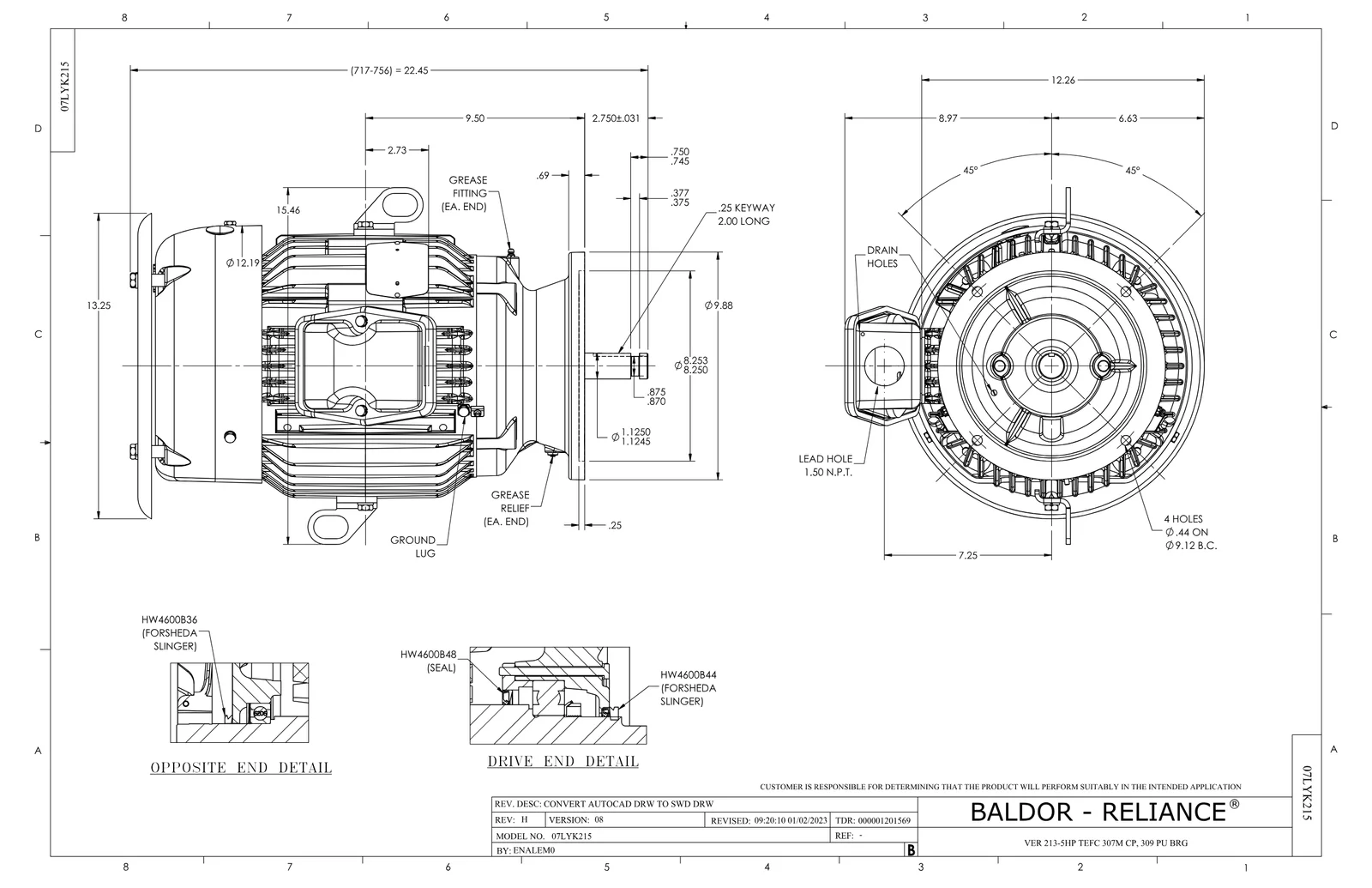

Overall Length C Dimension 22.51 in
Service Factor 1.15
Frame Material Cast Iron
Insulation Class F
IP Rating 44
Harmonization Code 8501.52.4000
Weight 173 lbs
Applications For normal medium and high thrust in-line pump applications. Waste water treatment plants, petro chemical industries, pulp and paper mills and agricultural irrigation applications.
Additional Details Severe duty construction with corrosion-resistant epoxy finish, cast-iron construction, designed for vertical mounting. Rotatable conduit box, stainless steel nameplates, shaft seals. Energy efficient windings. Two lifting lugs for balanced lifting. VHECP motors have NEMA Premium® efficiency and are Inverter-Ready. 1.15 Service Factor.
UPC_NO 781568397183
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/VHECP3769T
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=VHECP3769T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Description Keyword 7-1/2 hp
Mounting Type Vertical
Product Type Pump Motors
