Baldor SPM3607T AC Motors
Super Premium SP4 General Purpose Motor - 1-1/2 hp, 1200 rpm, 3 ph, 230/460 V, 182T Frame, TEFC Enclosure, 60 Hz, 1175 rpm Base, Inverter Duty
ITEM #6907c404ad9cc32ae131ea98 MFR #SPM3607T SKU #YLSG88WF5UL7GN9
Hızlı Özellikler
Motor Phase: 3 ph
Motor Horsepower: 1-1/2 hp
Synchronous Rpm: 1200 rpm
Motor Supply Voltage: 230/460 V
Frame Size: 182T
Enclosure Type: TEFC
Genel Bakış
Super Premium SP4 General Purpose Motor - 1-1/2 hp, 1200 rpm, 3 ph, 230/460 V, 182T Frame, TEFC Enclosure, 60 Hz, 1175 rpm Base, Inverter Duty
Teknik Özellikler
Motor Phase 3 ph
Motor Horsepower 1-1/2 hp
Synchronous Rpm 1200 rpm
Motor Supply Voltage 230/460 V
Frame Size 182T
Enclosure Type TEFC
Frequency Rating 60 Hz
Base RPM 1175 rpm
Duty Condition Type Inverter Duty
Mounting Type Foot Mount
Full Load Current 5 / 2.5 A
Full Load Efficiency 88.5 %
Motor Poles 6
Shaft Diameter 1.1250 in
Shaft Rotation Reversible

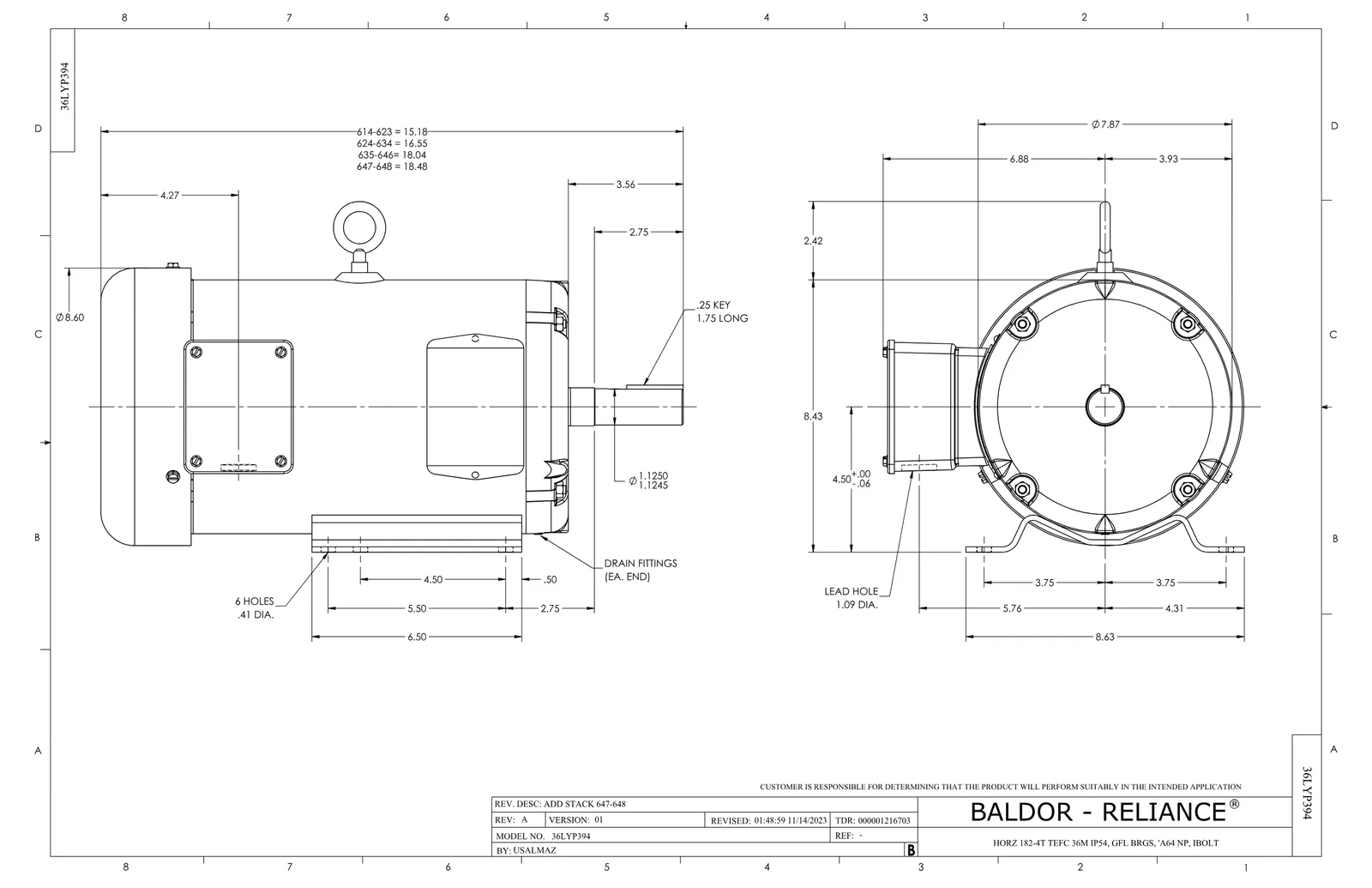

Overall Length C Dimension 18.04 in
Ambient Temperature Range 40 °C / 104 °F
NEMA Design Class B
Service Factor 1.15
Frame Material Steel
Insulation Class F
IP Rating NONE
Standards Met CURUSEEV, NEMA PREMIUM, WEEE
Drive End Bearing Size 6206
Opposite Drive End Bearing Size 6205
Weight 90 lbs.
Manufacturer Product Page https://www.baldor.com/catalog/SPM3607T

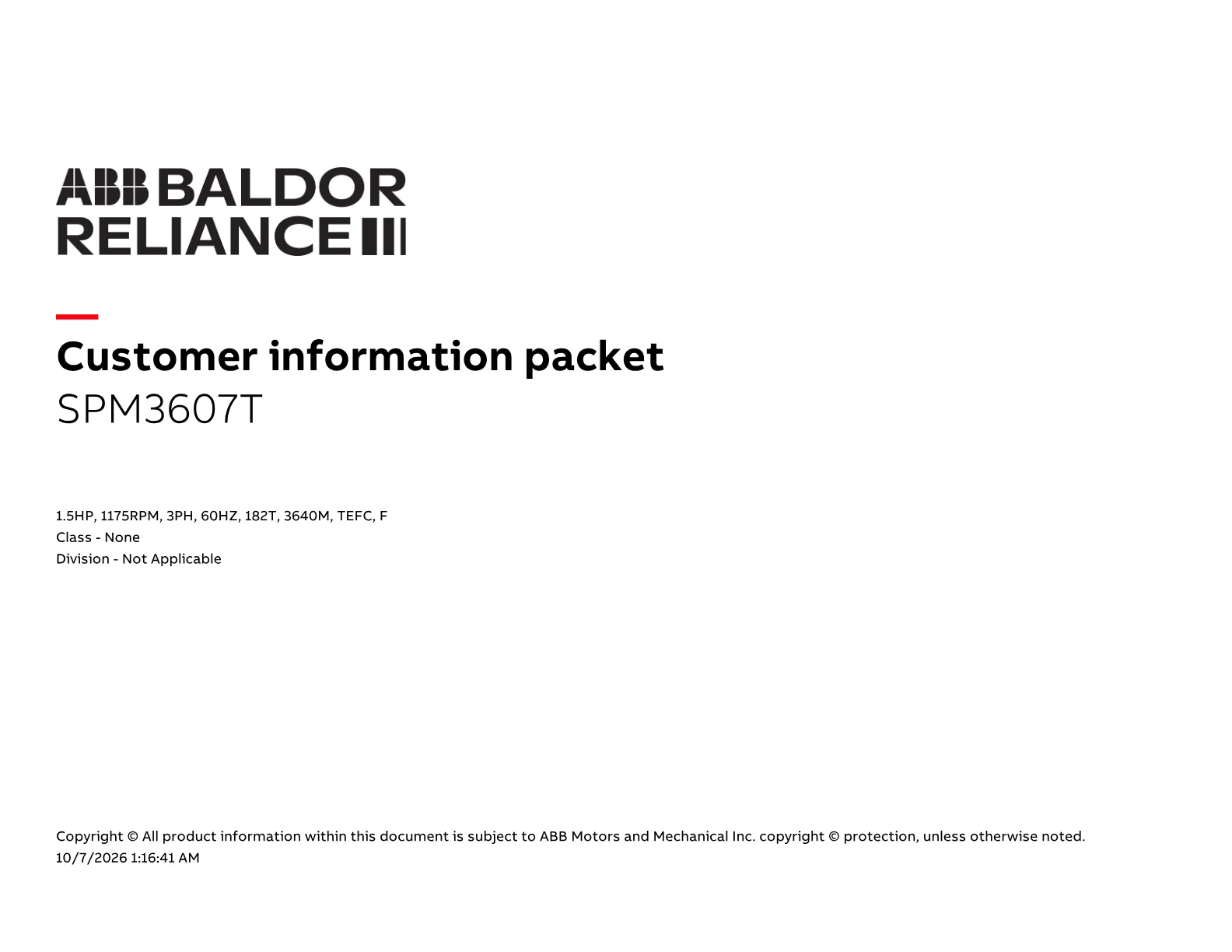

Product Brochure https://www.baldor.com/api/products/SPM3607T/infopacket
Product Type General Purpose Motors
