Baldor SPM3463 AC Motors
Super Premium SP4 General Purpose Motor - 3/4 hp, 3600 rpm, 3 ph, 230/460 V, 48 Frame, TEFC Enclosure, 60 Hz, 3450 rpm Base, Continuous Duty
ITEM #6907c098ad9cc32ae131dc84 MFR #SPM3463 SKU #YLSJ2B52P5X4W5Y
Hızlı Özellikler
Motor Phase: 3 ph
Motor Horsepower: 3/4 hp
Synchronous Rpm: 3600 rpm
Motor Supply Voltage: 230/460 V
Frame Size: 48
Enclosure Type: TEFC
Genel Bakış
Super Premium SP4 General Purpose Motor - 3/4 hp, 3600 rpm, 3 ph, 230/460 V, 48 Frame, TEFC Enclosure, 60 Hz, 3450 rpm Base, Continuous Duty
Teknik Özellikler
Motor Phase 3 ph
Motor Horsepower 3/4 hp
Synchronous Rpm 3600 rpm
Motor Supply Voltage 230/460 V
Frame Size 48
Enclosure Type TEFC
Frequency Rating 60 Hz
Base RPM 3450 rpm
Duty Condition Type Continuous Duty
Mounting Type Foot Mount
Full Load Current 2 / 1 A
Full Load Efficiency 80 %
Motor Poles 2
Shaft Diameter 0.5000 in
Shaft Rotation Reversible
Overall Length C Dimension 11.34 in
Ambient Temperature Range 40 °C / 104 °F
NEMA Design Class B
Service Factor 1.25
Frame Material Steel
Insulation Class F
IP Rating NONE
Standards Met C UR US, WEEE
Drive End Bearing Size 6203
Opposite Drive End Bearing Size 6203
Weight 30 lbs.
Manufacturer Product Page https://www.baldor.com/catalog/SPM3463

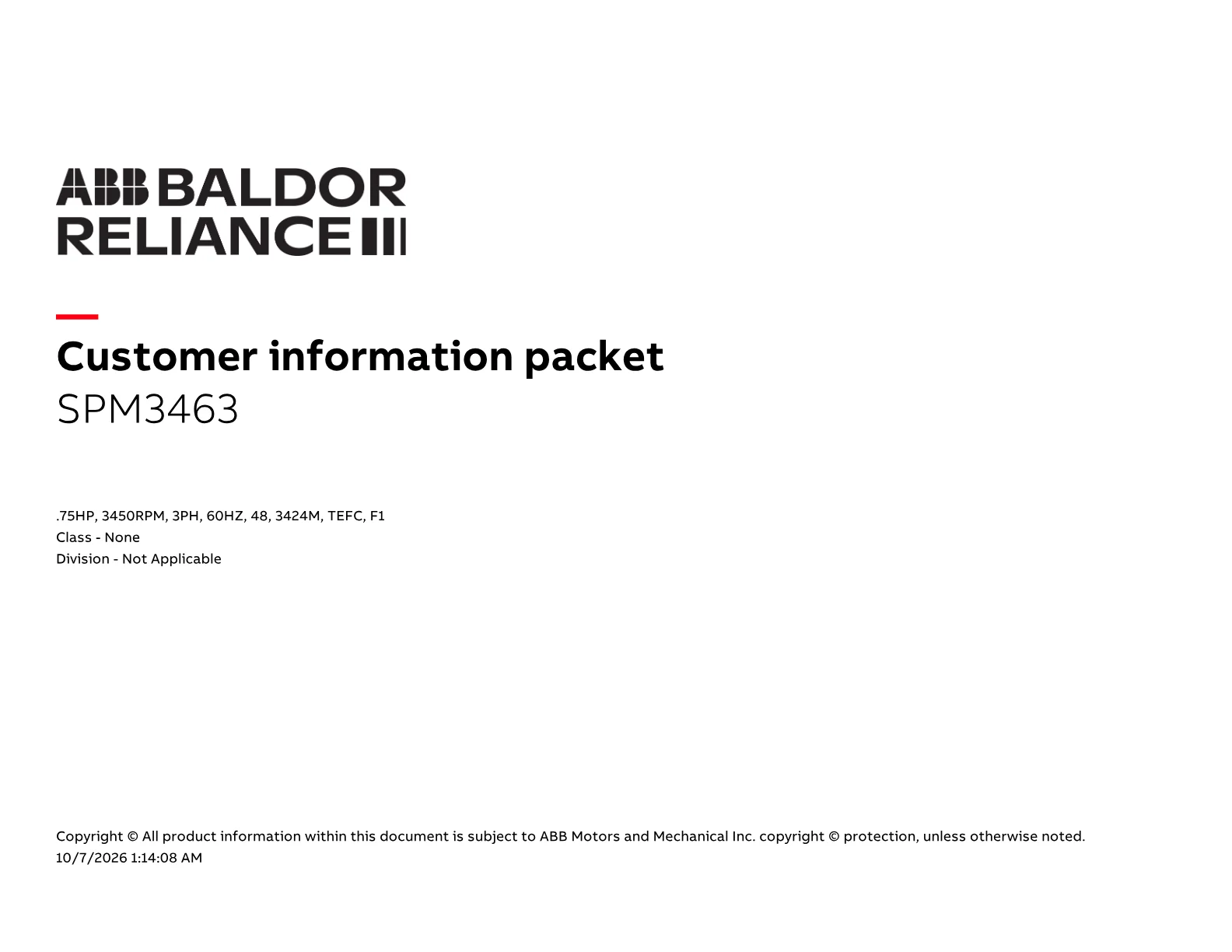

Product Brochure https://www.baldor.com/api/products/SPM3463/infopacket
Product Type General Purpose Motors
