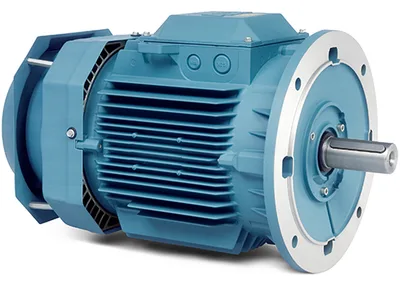

Baldor MVM06184D-AP AC Motors
IEC Frame AC Motor - 0.18 kW, 1800 rpm, 3 ph, 230/400//460 V, 63 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, Flange / Footless Mount
ITEM #6907a4b1ad9cc32ae1307399 MFR #MVM06184D-AP SKU #YLS9RE3RHQ46IRO
Hızlı Özellikler
Motor Category: General Purpose Motor
Motor Phase: 3 ph
kW: 0.18 kW
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 230/400//460 V
Frame Size: 63
Genel Bakış
IEC Frame AC Motor - 0.18 kW, 1800 rpm, 3 ph, 230/400//460 V, 63 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, Flange / Footless Mount
Teknik Özellikler
Motor Category General Purpose Motor
Motor Phase 3 ph
kW 0.18 kW
Synchronous Rpm 1800 rpm
Motor Supply Voltage 230/400//460 V
Frame Size 63
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 50/60 Hz
Full Load Amps 1.07 / 0.62 / 0.66 A
Full Load Efficiency 67.30 %
Amps @ Voltage 0.6 A @ 400 V; 0.7 A @ 415 V; 1.1 A @ 230 V
Volts @ Frequency 230 V @ 50 Hz; 400 V @ 50 Hz; 460 V @ 60 Hz
Shaft Diameter 11 mm
Service Factor 1.00
Frame Material Aluminum
Insulation Class F
IP Rating 55
Harmonization Code 8501.52.4000
Weight 9.92 lbs
Applications Pumps, compressors, fans, conveyors, and other general purpose three phase applications requiring IEC metric B5 flange mount replacements.
Additional Details ABB Process Performance (severe duty) IP55 construction. Aluminum frame and endplates. IE2 Efficiency per IEC 60034-30; Motors for use in USA are marked with DOE compliance number for use on 460 volt, 60 Hz; 6 post terminal block; Class F insulated motors with Class “B” temperature limits; 1.0 service factor; 160-250 frames have PTC thermistors (3 in series),150C in stator winding. Suitable for mounting in any position. Inverter ready: frames 63-250, 230-400V, 50Hz and 460V, 60 Hz, 2:1CT, 20:1VT.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/MVM06184D-AP
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=MVM06184D-AP&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Flange / Footless
Product Type IEC Frame Motors
