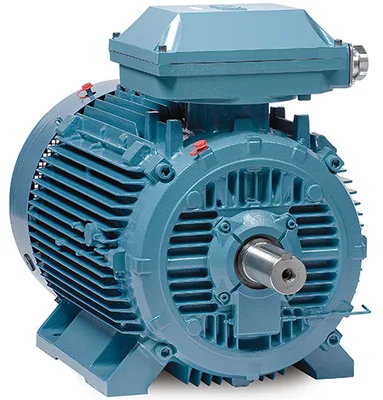

Baldor MM28752-PP AC Motors
IEC Frame AC Motor - 75 kW, 3600 rpm, 3 ph, 400/415/690//460 V, 280 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, Foot Mount
ITEM #6907cd936c556f461693baf6 MFR #MM28752-PP SKU #YLSHHHIM14BECNQ
Hızlı Özellikler
Motor Category: General Purpose Motor
Motor Phase: 3 ph
kW: 75 kW
Synchronous Rpm: 3600 rpm
Motor Supply Voltage: 400/415/690//460 V
Frame Size: 280
Genel Bakış
IEC Frame AC Motor - 75 kW, 3600 rpm, 3 ph, 400/415/690//460 V, 280 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, Foot Mount
Teknik Özellikler
Motor Category General Purpose Motor
Motor Phase 3 ph
kW 75 kW
Synchronous Rpm 3600 rpm
Motor Supply Voltage 400/415/690//460 V
Frame Size 280
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 50/60 Hz
Full Load Efficiency 94.40 %
Volts @ Frequency 400 V @ 50 Hz; 415 V @ 50 Hz; 690 V @ 50 Hz
Shaft Diameter 80 mm
Service Factor 1.00
Frame Material Cast Iron
Insulation Class F
IP Rating 55
Harmonization Code 8501.52.8040
Weight 1377.87 lbs
Applications Pumps, compressors, fans, conveyors, and other general purpose three phase applications requiring IEC metric B3 base mount replacements.
Additional Details ABB Process Performance (severe duty) IP55 construction. Choice of aluminum (-AP) or cast iron (-PP) frame and endplates.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/MM28752-PP
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=MM28752-PP&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Foot
Product Type IEC Frame Motors
