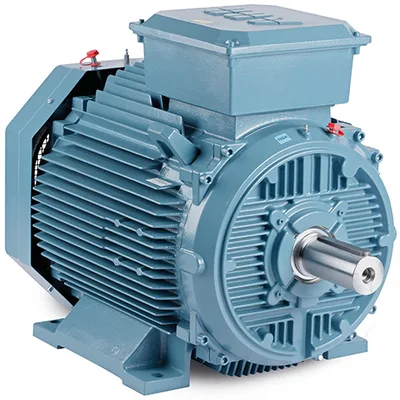

Baldor MM22374-PP AC Motors
IEC Frame AC Motor - 37 kW, 1800 rpm, 3 ph, 400/415/690//460 V, 225 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, Foot Mount
ITEM #6907cd936c556f461693baf4 MFR #MM22374-PP SKU #YLS29QH2PNGO32L
Hızlı Özellikler
Motor Category: General Purpose Motor
Motor Phase: 3 ph
kW: 37 kW
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 400/415/690//460 V
Frame Size: 225
Genel Bakış
IEC Frame AC Motor - 37 kW, 1800 rpm, 3 ph, 400/415/690//460 V, 225 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, Foot Mount
Teknik Özellikler
Motor Category General Purpose Motor
Motor Phase 3 ph
kW 37 kW
Synchronous Rpm 1800 rpm
Motor Supply Voltage 400/415/690//460 V
Frame Size 225
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 50/60 Hz
Full Load Amps 68.00 / 39.40 / 68.00 A
Full Load Efficiency 93.40 %
Amps @ Voltage 39.4 A @ 690 V; 68.0 A @ 400 V; 68.0 A @ 415 V
Volts @ Frequency 415 V @ 50 Hz; 400 V @ 50 Hz; 690 V @ 50 Hz
Shaft Diameter 60 mm
Service Factor 1.00
Frame Material Cast Iron
Insulation Class F
IP Rating 55
Harmonization Code 8501.52.8040
Weight 714.29 lbs
Applications Pumps, compressors, fans, conveyors, and other general purpose three phase applications requiring IEC metric B3 base mount replacements.
Additional Details ABB Process Performance (severe duty) IP55 construction. Choice of aluminum (-AP) or cast iron (-PP) frame and endplates.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/MM22374-PP
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=MM22374-PP&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Foot
Product Type IEC Frame Motors
