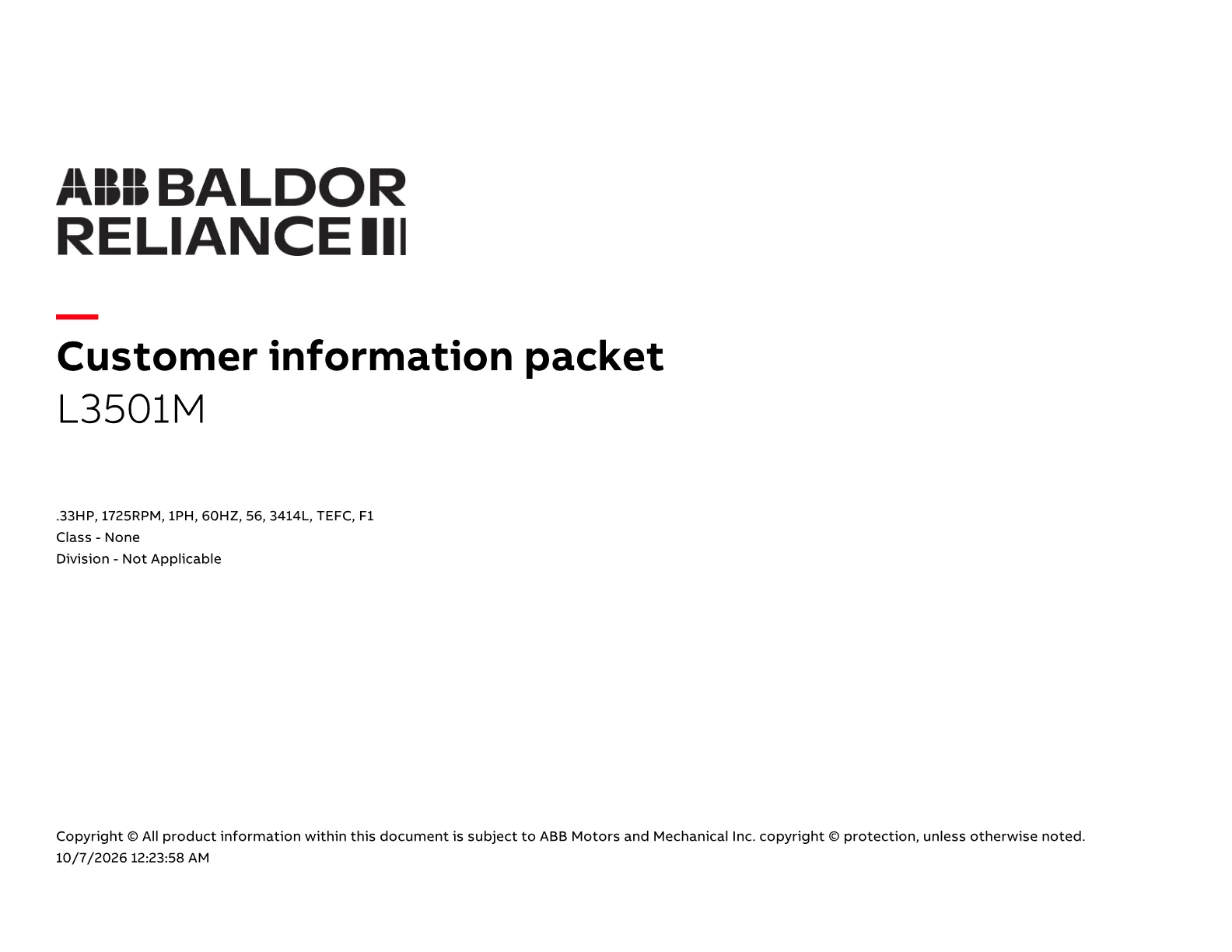

Baldor L3501M AC Motors
General Purpose Motor - 1/3 hp, 1800 rpm, 1 ph, 115/230 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty
ITEM #6907a6e7ad9cc32ae1309621 MFR #L3501M SKU #YLSO2LDS1H2JBI6
Hızlı Özellikler
Motor Phase: 1 ph
Motor Horsepower: 1/3 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 115/230 V
Frame Size: 56
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
General Purpose Motor - 1/3 hp, 1800 rpm, 1 ph, 115/230 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty
Özellikler ve Avantajlar
- Heavy-gauge steel frames and a heavy-duty base seam welded to the frame
- Ball bearings
- “Snap Action” starting switch and gasketed conduit box and capacitor cover
- TEFC, foot mount
- Applications: Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others
Teknik Özellikler
Motor Phase 1 ph
Motor Horsepower 1/3 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 115/230 V
Frame Size 56
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Base RPM 1725 rpm
Duty Condition Type Continuous Duty
Mounting Type Foot
Full Load Current 3.00 A
Full Load Efficiency 60.00 %
Amps @ Voltage 6.0 A @ 115 V; 3.6 A @ 208 V; 3.0 A @ 230 V
Volts @ Frequency 115 V @ 60 Hz; 230 V @ 60 Hz
Description Keyword 1/3 hp
Shaft Diameter 0.6250 in
Overall Length C Dimension 11.34 in
Warranty 2 Year Warranty
Type Of Bearing Ball
NEMA Design Class N
Service Factor 1.35
Frame Material Steel
Insulation Class B
IP Rating 44
Standards Met UR, CSA
Weight 22 lbs
Applications Compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools and others.
Additional Details Heavy gauge steel frames and a heavy duty base seam welded to the frame, ball bearings, a “Snap Action” starting switch and gasketed conduit box and capacitor cover.
Harmonization Code 8501.40.4040
UPC_NO 781568100189
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/L3501M
Motor Category General Purpose Motor
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=L3501M&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
